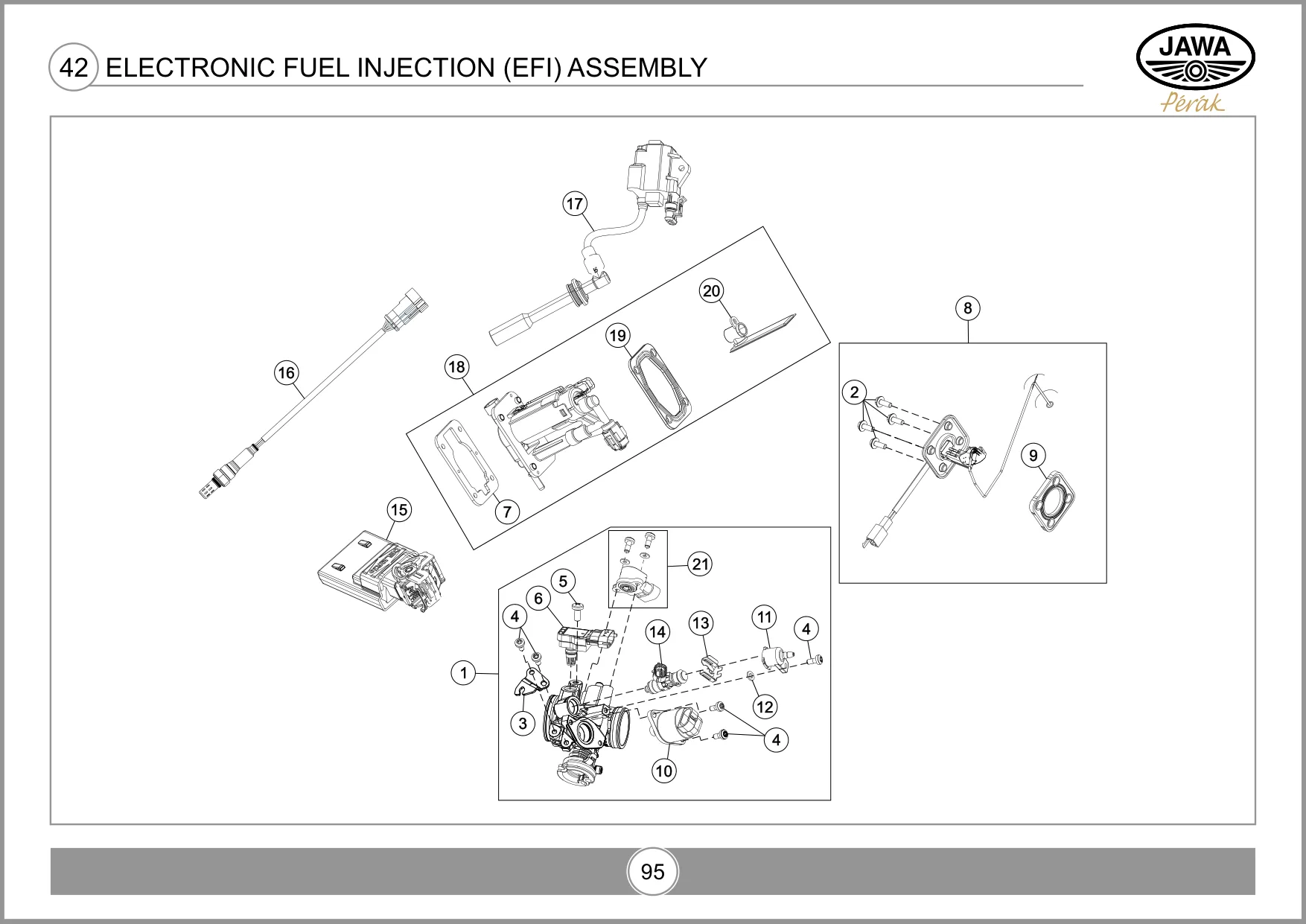

F27 — Впрыск топлива (EFI)
Позиций в узле: 23. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0102HKW0010N | THROTTLE BODY ASSEMBLY | 1 | ||
| 2 | SP0906041 | BOLT, HEX FLANGE SH-M6X12 | 4 | В каталоге также: FLANGED HEAD BOLT-SH M6X12 | |
| 3 | T0102HKW0040N | THROTTLE CABLE BRACKET | 1 | ||
| 4 | T1501PKW0050N | FASTNER-MTB | 5 | ||
| 5 | T1502EKW0020N | FASTNER-TMAP | 1 | ||
| 6 | T1502EKE0250N | TMAP_ECU_C | 1 | ||
| 7 | T10050KW0050N | METAL FLANGE | 1 | ||
| 8 | T1501PKW0010N | FUEL SENSOR UNIT | 1 | ||
| 9 | T1501PKW0040N | RUBBER GASKET | 1 | ||
| 10 | T1502HKW0020N | IACV ECU | 1 | ||
| 11 | T1501PKW0020E | FUEL INJECTOR CAP | 1 | ||
| 12 | T1501PKW0060N | SEPERATOR | 1 | ||
| 13 | T0102BKE0050N | FIXING INJECTOR CLIP (DELLORTO) | 1 | ||
| 14 | T1501PKW0070N | FUEL INJECTOR _ECU C | 1 | В каталоге также: FUEL INJECTOR_ECU C | |
| 15 | T1502GJ30010N | ELECTRONIC CONTROL UNIT - J301 | 1 | ||
| 15.1 | T1502GKW0020N | ELECTRONIC CONTROL UNIT | 1 | В каталоге также: ELECTRONIC CONTROL UNIT-OBD-II | |
| 15.2 | T1502GJ30120N | ELECTRONIC CONTROL UNIT_EURO-5+ | 1 | ||
| 16 | T15000J30010N | LAMBDA SENSOR | 1 | ||
| 17 | T1502CKE0050N | IGNITION COIL WITH CABLE | 1 | ||
| 18 | T10050KW0010N | FUEL PUMP PLASTIC | 1 | ||
| 19 | T10050KW0060N | RUBBER GASKET | 1 | ||
| 20 | T10050KW0040N | FUEL FILTER | 1 | ||
| 21 | T0102HKW0060N | THROTTLE POSITION SENSOR KIT | 1 |
