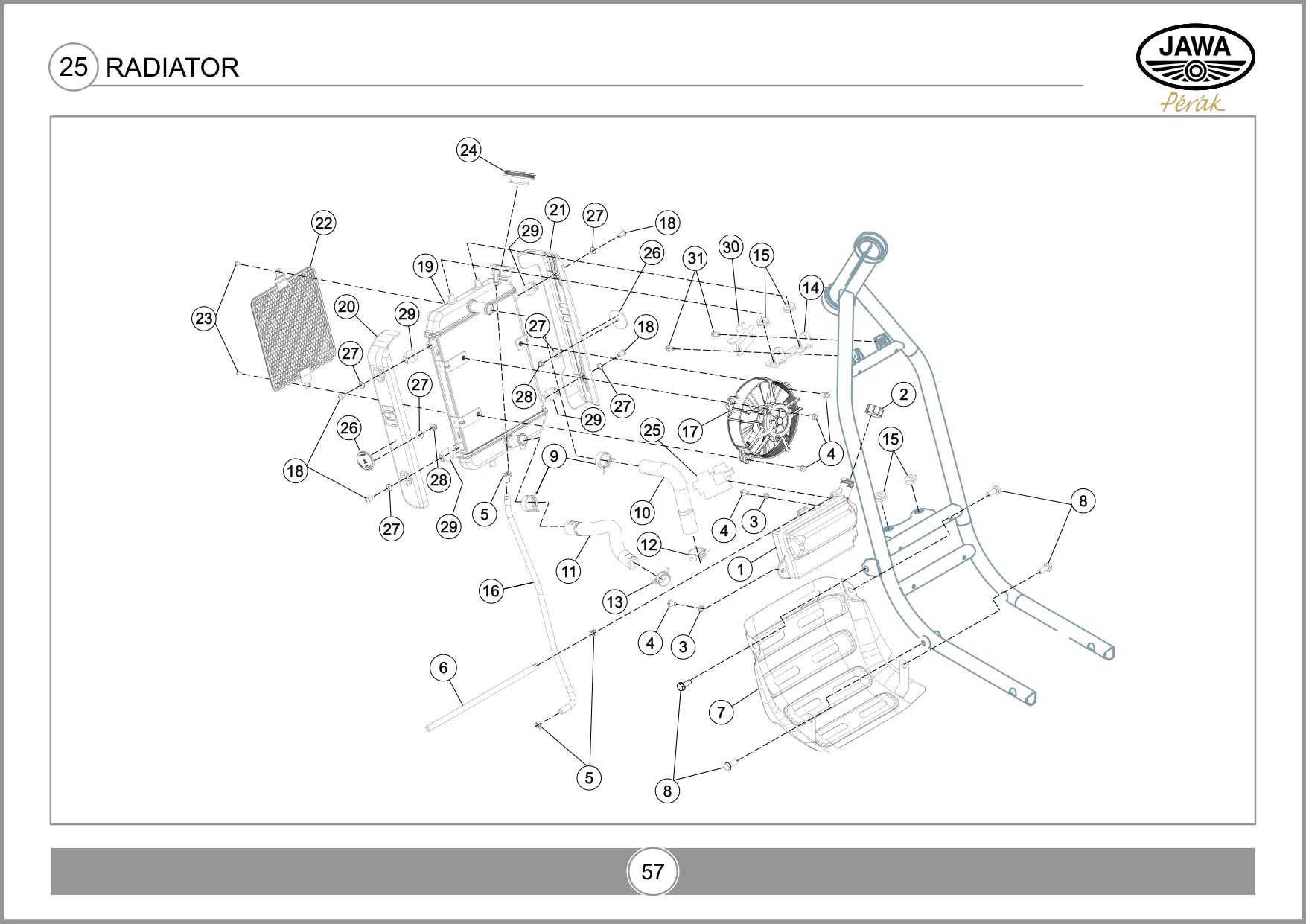

F10 — Радиатор
Позиций в узле: 31. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0401DKW0010N | TANK RECOVERY - COOLING SYSTEM | 1 | ||
| 2 | T04000KW0130N | CAP COOLANT TANK | 1 | ||
| 3 | MH01790003300 | SPACER H=4 FOR M6 | 2 | ||
| 4 | SP0906041 | BOLT, HEX FLANGE SH-M6X12 | 5 | В каталоге также: FLANGED HEAD BOLT-SH M6X12 | |
| 5 | T10050KE0100N | SPRING BAND CLAMP DIA 11 | 3 | ||
| 6 | T04000KW0060N | HOSE BREATHER RECOVERY TANK | 1 | ||
| 7 | T08000KW0300F | BASH PLATE | 1 | ||
| 8 | SF0202054 | SCREW HEX FL SL M8X1.25X20X8.8 | 4 | ||
| 9 | T0401DKE0290N | SPRING BAND CLAMP DIA 24 | 2 | ||
| 10 | T04000KW0030N | HOSE THERMOSTAT TO RADIATOR | 1 | ||
| 11 | T04000KW0040N | HOSE RADIATOR TO PUMP | 1 | ||
| 12 | T0401DKE0300N | SPRING BAND CLAMP DIA 27 | 1 | В каталоге также: SPRING BAND CLAMP DIA 26MM (BLACK) | |
| 13 | SF0705038 | CLAMP SPRING BAND 22X12X1.3 | 1 | ||
| 14 | T04000KW0090E | UPPER BRACKET RADIATOR LOOSE MATT BLACK | 1 | ||
| 15 | MH01610001700 | GROMMET FOR M6 | 4 | ||
| 16 | T04000KW0020N | HOSE RADIATOR TO RECOVERY TANK | 1 | ||
| 17 | T0401FJ30010N | RADIATOR FAN J301 | 1 | ||
| 18 | SF0212019 | SCREW RDSKT M6X1X28XA2-70 | 4 | ||
| 19 | T04000KW0010N | RADIATOR SUB ASSEMBLY | 1 | ||
| 20 | T13000KW0030E | COVER RADIATOR LH MATT BLACK | 1 | ||
| 21 | T13000KW0050E | COVER RADIATOR RH MATT BLACK | 1 | ||
| 22 | T0401AKW0010N | GRILL RADIATOR FRONT | 1 | ||
| 23 | TSF0224080 | BUTTON HEAD SOCKET SCREW M6X10 | 2 | В каталоге также: BUTTON HEAD SOCKET SCREW M6X16 BLACK (LOCKTITE) | |
| 24 | T0401AKW0020N | PRESSURE CAP | 1 | ||
| 25 | T13200KW0240N | STICKER RECOVERY TANK | 1 | ||
| 26 | T1501FKW0070N | SIDE REFLEX REFLECTOR | 2 | ||
| 27 | TSF0401123 | WASHER M5X12 (BLACK) | 6 | В каталоге также: WASHER M5X12 | |
| 28 | SF0302015 | NYLOC NUT M5 | 2 | ||
| 29 | T0401BJ30010N | BUSH - RADIATOR | 4 | ||
| 30 | T08010KW0490E | ADD-ON BRACKET FOR STEERING LOCK – EUIV | 1 | ||
| 31 | TSF0102271 | SCREW HEX FL M6X1X18X8.8 | 2 | В каталоге также: HEX FLANGE BOLT M6*18 |
