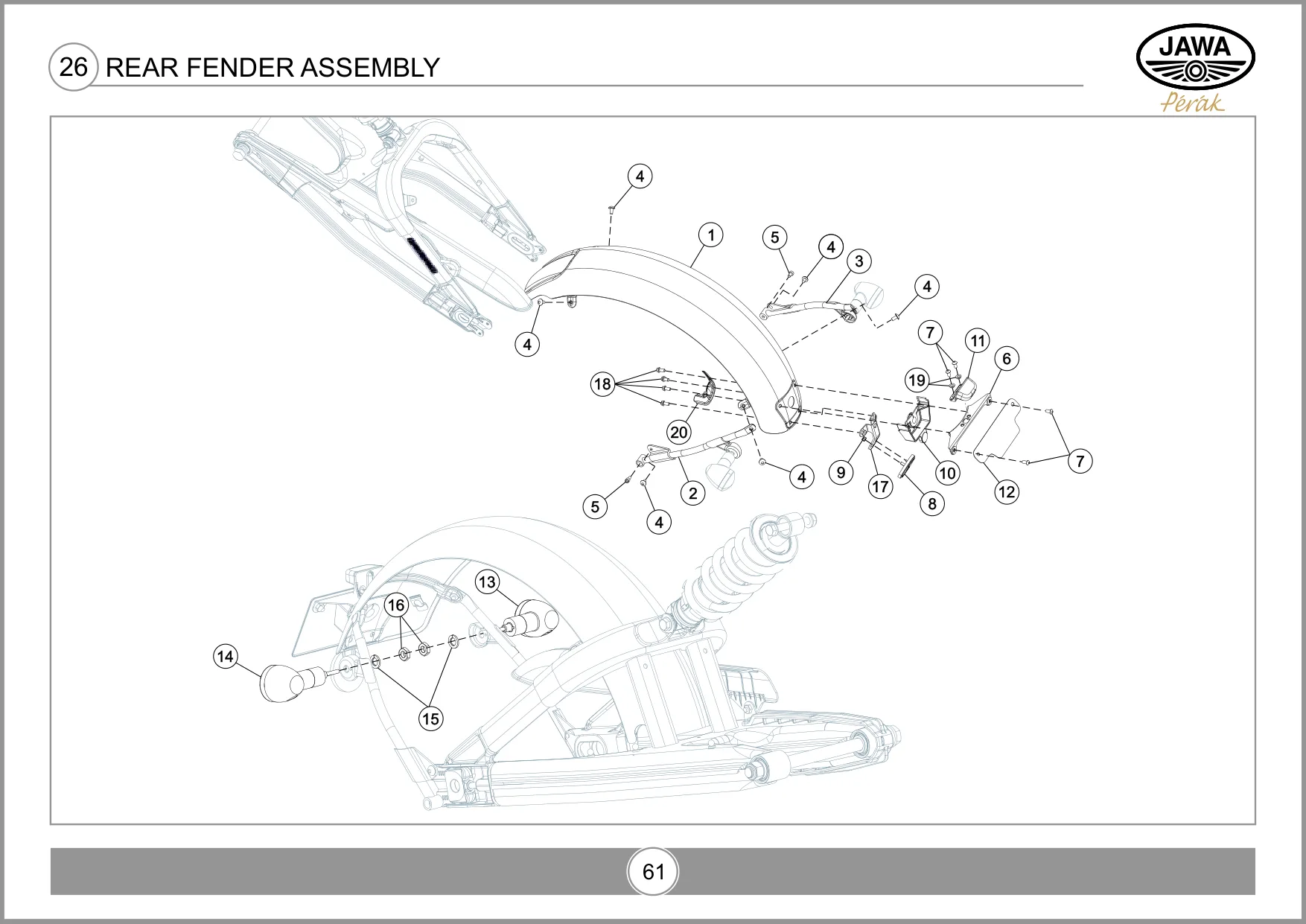

F11 — Крыло заднее
Позиций в узле: 20. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T13070J30010L | REAR FENDER | 1 | ||
| 2 | T13070J30020N | REAR FENDER STAY LH | 1 | ||
| 3 | T13070J30030N | REAR FENDER STAY RH | 1 | ||
| 4 | SF0212023 | SCREW RDSKT M6X1X12XA2-70 | 6 | ||
| 5 | SP0306002 | HEX SOC HD CAP SCREW (M6X1.0PX25L) | 2 | ||
| 6 | T13070KW0100W | REAR NUMBER PLATE MTG BKT GLOSSY BLACK | 1 | ||
| 7 | SF0212026 | SCREW RDSKT M6X1X12XA2-70 | 4 | ||
| 8 | T1501FKW0060N | REAR REFLEX REFLECTOR | 1 | ||
| 9 | SF0302015 | NYLOC NUT M5 | 1 | ||
| 10 | T15000KW0040N | REAR MUDGUARD COUPLER | 1 | ||
| 11 | T1501TKW0010N | NUMBER PLATE LAMP | 1 | В каталоге также: LICENSE LAMP ASSEMBLY | |
| 12 | T13030KW0010N | COVER REAR NUMBER PLATE BRACKET | 1 | ||
| 13 | T1501GKW0030E | TURN SIGNAL INDICATOR_REAR LH | 1 | ||
| 14 | T1501GKW0040E | TURN SIGNAL INDICATOR_REAR RH SPRING WASHER | 1 | В каталоге также: TURN SIGNAL INDICATOR_REAR RH | |
| 15 | 93910007 | SPRING WASHER B10 IS:3063 | 2 | ||
| 16 | SF0301023 | NUT HEX M10X1.25X5X8XZN | 2 | ||
| 17 | T13070KW0110W | REFLEX REFLECTOR MTG BKT BLACK GLOSSY | 1 | ||
| 18 | 95701-06012-00 | BOLT FL.6 X 12 | 4 | В каталоге также: BOLTFLANGE6X12(WHITE) | |
| 19 | MH01790003300 | SPACER H=4 FOR M6 | 2 | В каталоге также: SPACER H=6 FOR M6 | |
| 20 | T13070J30090N | REAR FENDER WIRING ROUTING BRACKET | 1 |
