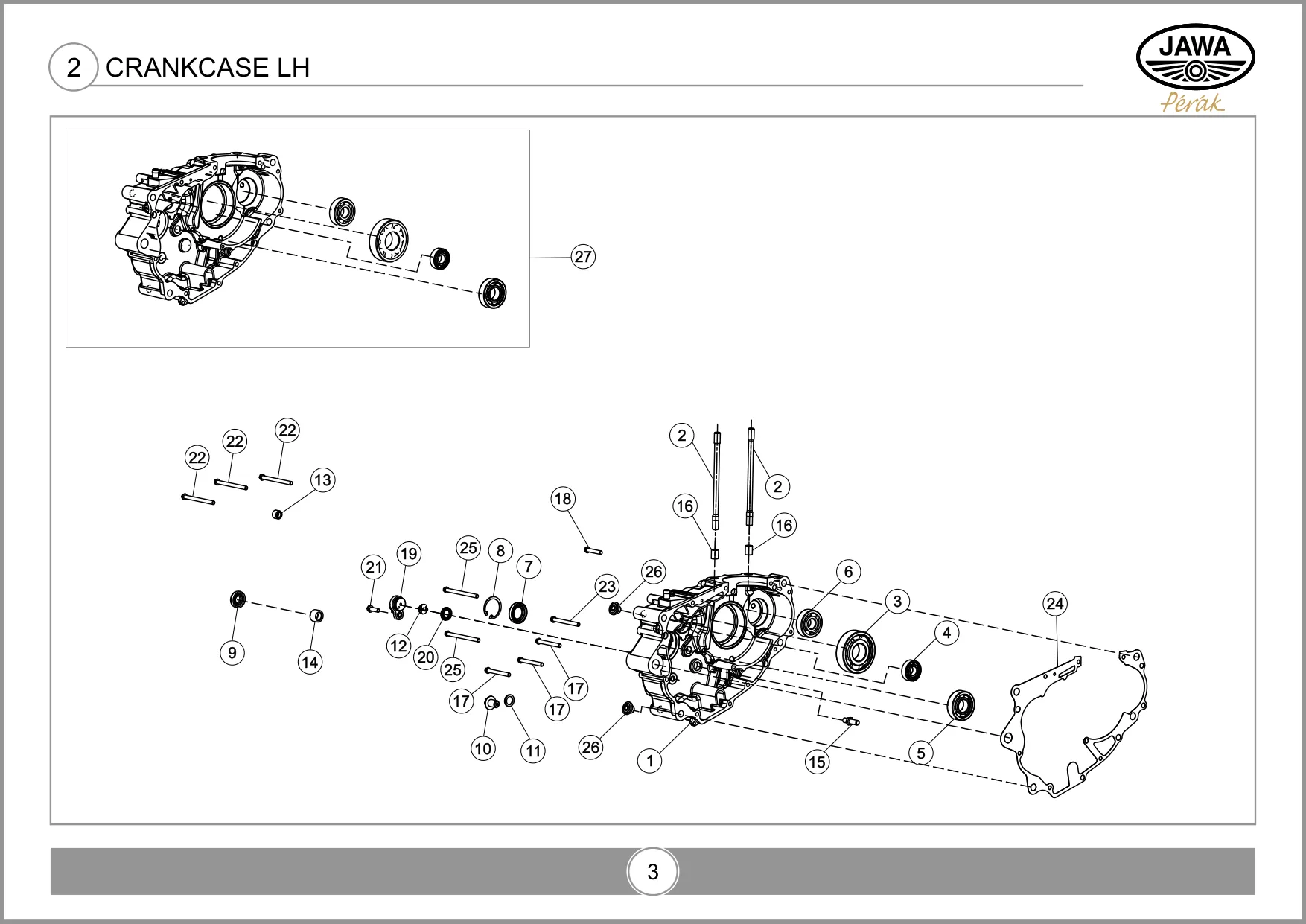

E02 — Картер левый
Позиций в узле: 27. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0202CVG0100E | CCLH WITH OIL PLUG & BREATHER PIPE | 1 | ||
| 2 | T0202CUF0760N | STUD - M10 | 2 | ||
| 3 | T18050UF0180N | BEARING BALL CRANKSHAFT (DIA30*DIA72*19) | 1 | ||
| 4 | T18050UF0130N | BEARING BALL INPUT (DIA15*DIA35*11) | 1 | ||
| 5 | T18050UF0140N | BEARING BALL OUTPUT - ONE SIDE SEAL (DIA22*DIA50*14) | 1 | ||
| 6 | T18050UF0320N | BEARING BALL BALANCER (6303.C3) (Ø17*Ø47*14) | 1 | ||
| 7 | T18020UF0080N | OIL SEAL, OUTPUT SHAFT (DIA22*DIA34*7) FKM | 1 | ||
| 8 | TSF0602039 | INTERNAL CIRCLIP (Ø35*1.75) | 1 | ||
| 9 | T18020UF0090N | OIL SEAL, LEVER SHIFT SHAFT (DIA14*DIA28*7) FKM | 1 | ||
| 10 | T0202CUF2440N | BOLT, DRAIN MAGNETIC - M12X1.5 | 1 | ||
| 11 | MJ01700006100 | WASHER -OIL DRAIN PLUG (DIA14.2*DIA20*2) (COMMON E01) | 1 | ||
| 12 | T0217AUF0030N | SLIDING CONTACT NEUTRAL SWITCH | 1 | ||
| 13 | T18050UF0160N | NEEDLE BRG STRATER INTERIM GEAR (DIA10*DIA14*10) | 1 | ||
| 14 | T18050UF0310N | NEEDLE BRG (DIA14*DIA20*12) SHIFT SHAFT LH SIDE | 1 | ||
| 15 | T0202CUF0780N | BOLT, SHIFTER STOPPER - M8X1.25 | 1 | ||
| 16 | T18070UF0030N | DOWEL PIN, HOLLOW DIA12*15 | 2 | ||
| 17 | SP0906043 | BOLT, HEX FLANGE SH - M6X60 | 3 | ||
| 18 | TSF0102290 | BOLT, HEX FLANGE SH - M6X35 | 1 | ||
| 19 | T0217AUF0010N | NEUTRAL SWITCH WITH O RING | 1 | ||
| 20 | T18020UF0100N | OIL SEAL, NEUTRAL SWITCH | 1 | ||
| 21 | SP0906029 | BOLT, HEX FLANGE SH - M6X20 | 1 | В каталоге также: BPLT, HEX FLANGE SH-M6X20 | |
| 22 | TSF0102291 | BOLT, HEX FLANGE SH - M6X75 | 3 | ||
| 23 | SP0906033 | BOLT, HEX FLANGE SH - M6X65 | 1 | ||
| 24 | T02090VE0020N | GASKET, CRANKCASE | 1 | ||
| 25 | SP0906034 | BOLT, HEX FLANGE SH - M6X85 | 2 | ||
| 26 | T0202DVG0200E | GUAGE INSPECTION COVER | 1 | ||
| 27 | T0202CVG0110E | CCLH KIT | 1 |
