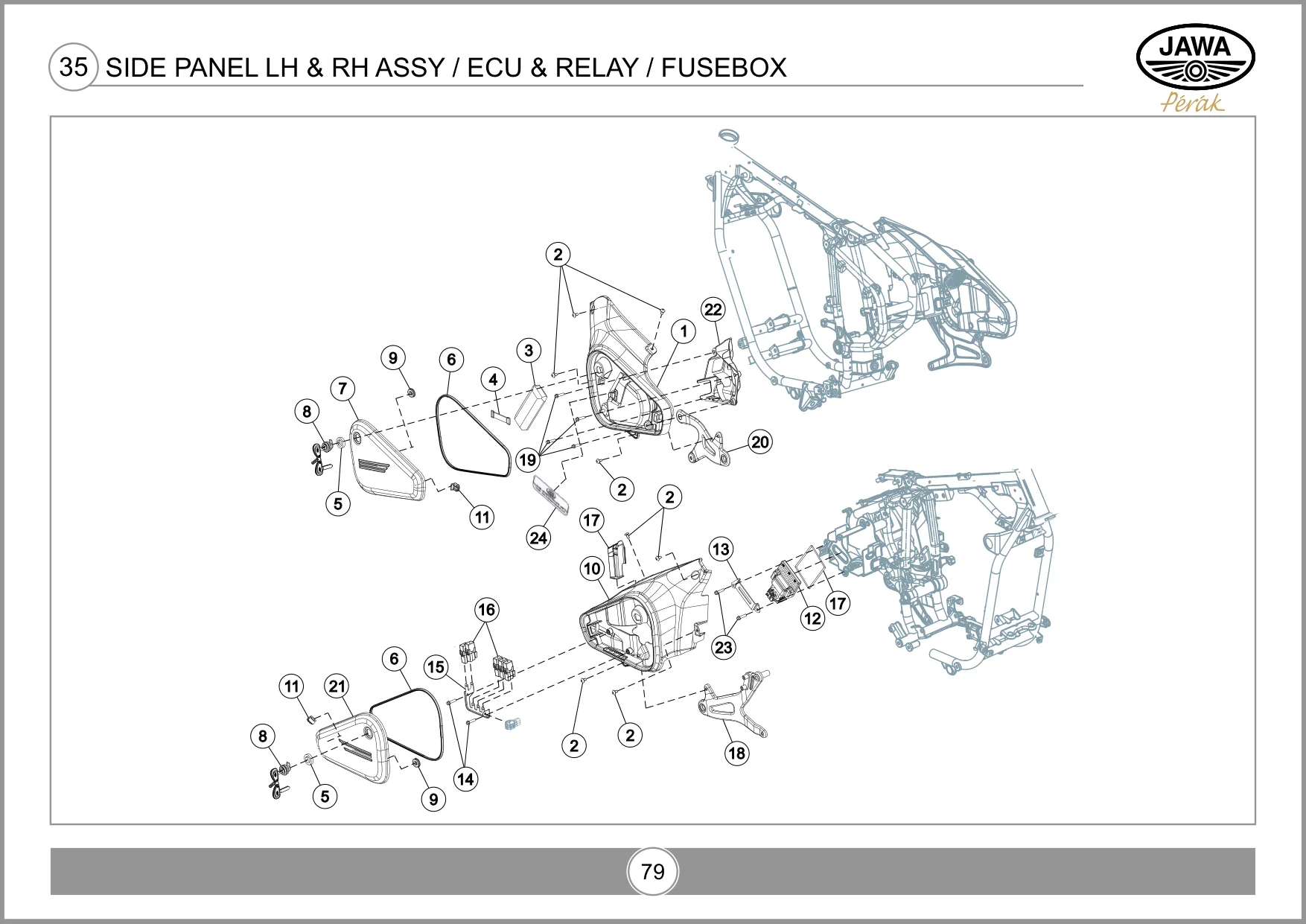

F20 — Боковые крышки, ЭБУ и реле
Позиций в узле: 25. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T13010J30020E | SIDE PANEL LH MATT BLACK | 1 | ||
| 2 | SF0212023 | SCREW RDSKT M6X1X12XA2-70 | 8 | ||
| 3 | T14010KW0010N | TOOL KIT | 1 | ||
| 4 | T14010KE0010N | TOOL KIT BAND | 1 | ||
| 5 | T18080KS0020N | DAMPER SIDE PANEL LOCK | 2 | ||
| 6 | T13010J30060N | BEAD SIDE PANEL J3 | 2 | ||
| 7 | T13010J30040L | BOX SIDE COVER LH MATT CHARCOAL GREY | 1 | ||
| 8 | T2401FKW0010N | SIDE COVER LOCK C300 | 2 | ||
| 9 | T13010KT0140N | GROMMET SIDE COVER FRONT | 2 | ||
| 10 | T13010J30030E | SIDE PANEL RH MATT BLACK | 1 | ||
| 11 | T13010KT0120N | PLUG SIDE COVER | 2 | ||
| 12 | T1502GJ30010N | ELECTRONIC CONTROL UNIT - J301 | 1 | ||
| 12.1 | T1502GJ30120N | ELECTRONIC CONTROL UNIT_EURO-5+ | 1 | ||
| 13 | T13010J30070N | BRACKET ECU MTG. | 1 | ||
| 14 | 95701-06012-00 | BOLT FL.6 X 12 | 2 | ||
| 15 | T13010J30080N | BRACKET RELAY MOUNTING | 1 | ||
| 16 | T1501FKW0120N | MINI RELAY (RESISTOR TYPE) | 5 | ||
| 17 | T13010J30100N | SIDE PANEL RUBBER CAP | 1 | ||
| 18 | T2201BJ30020N | STAY EXHAUST MTG RH | 1 | ||
| 19 | SP0906041 | BOLT, HEX FLANGE SH-M6X12 | 4 | В каталоге также: FLANGED HEAD BOLT-SH M6X12 | |
| 20 | T2201BJ30010N | STAY EXHAUST MTG LH | 1 | ||
| 21 | T13010J30050L | BOX SIDE COVER RH MATT CHARCOAL GREY | 1 | ||
| 22 | T13010J30090N | AIR FILTER ENTRY DUCT COVER | 1 | ||
| 23 | 95701-06010-08 | BOLT FLANGE 6X10 | 2 | ||
| 24 | T13010KW0290N | MANUFACTURING LABEL STICKER | 1 | В каталоге также: MANUFACTURER LABEL STICKER |
