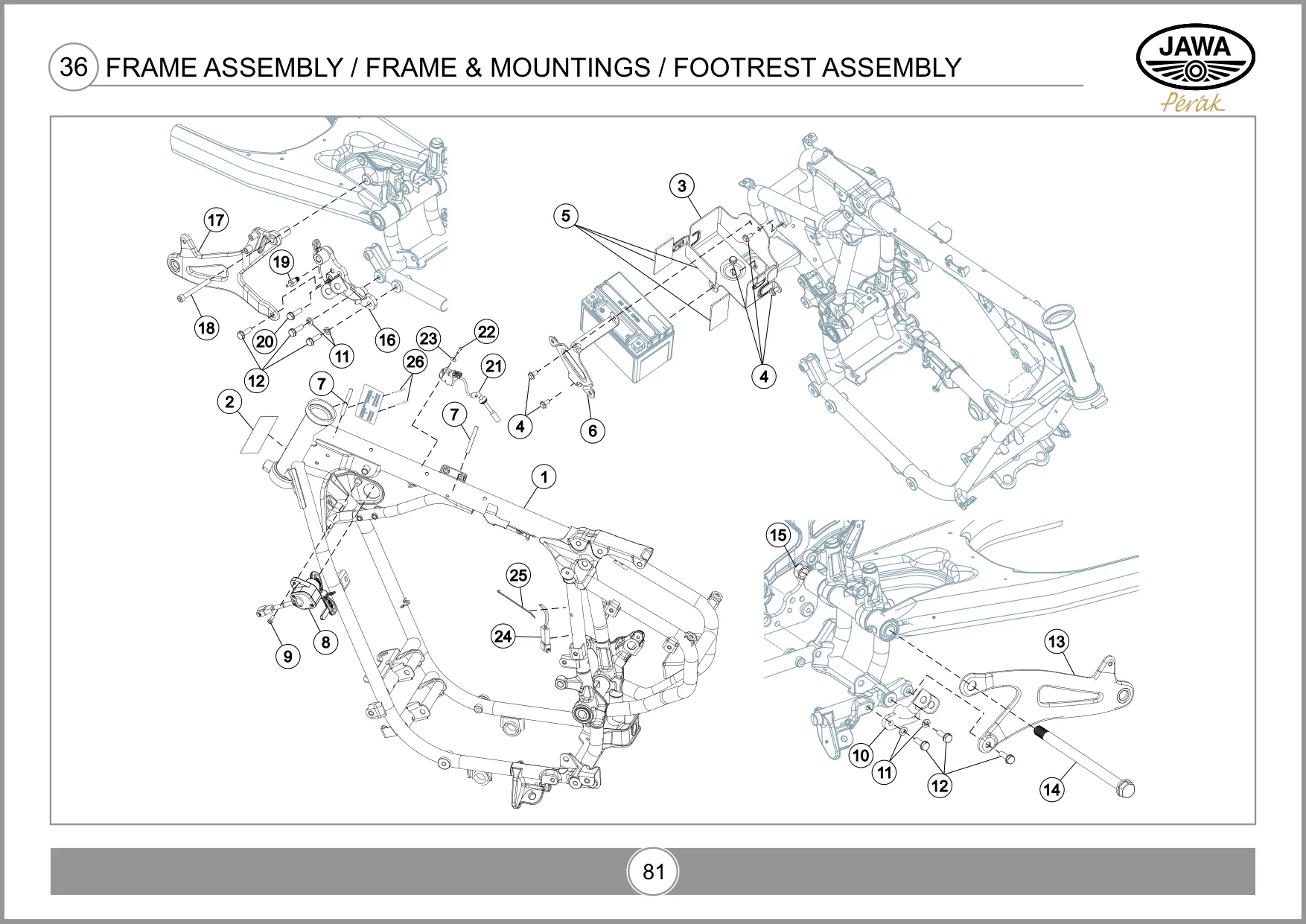

F21 — Рама, крепления и подножки
Позиций в узле: 26. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T08010J30010W | FRAME COMPLETE BLACK GLOSSY | 1 | ||
| 2 | T08000KE0020N | ANTI ABRASIVE TAPE HEAD PIPE | 1 | ||
| 3 | T08000J30020N | BATTERY BOX | 1 | ||
| 4 | 95701-06012-00 | BOLT FL.6 X 12 | 5 | ||
| 5 | T1503DKE0250N | PAD BATTERY BOX | 3 | ||
| 6 | T08000J30040N | CLAMP BATTERY BOX | 1 | ||
| 7 | T0702JKE0010N | CLAMP THROTTLE CABLE | 3 | ||
| 8 | T1501NKW0010N | IGNITION SWITCH ASSY | 1 | ||
| 9 | TSF0101269 | HEX BOLT 5 x 12 | 1 | ||
| 10 | T2201AKW0020W | RIDER FOOTREST LH BLACK GLOSSY | 1 | ||
| 11 | SP3908001 | 2W_SPRING WASHER | 4 | В каталоге также: SPRING WASHER (M8) | |
| 12 | SF0102057 | FLANGE BOLT M8 X 1.25 X 25L | 6 | ||
| 13 | T2201BJ30010N | STAY EXHAUST MTG LH | 1 | ||
| 14 | T1101CKW0010N | SWING ARM AXLE M16 | 1 | ||
| 15 | TSF0318003 | SELF LOCK NUT M16 | 1 | ||
| 16 | T2201AJ30020W | RIDER FOOTREST RH BLACK GLOSSY | 1 | ||
| 17 | T2201BJ30020N | STAY EXHAUST MTG RH | 1 | ||
| 18 | TSF0212016 | SOCKET HEAD SCREW M8X70 | 1 | ||
| 19 | T2201AKW0150N | PIN, PEDAL RETURN SPRING | 1 | ||
| 20 | SP0308023 | SOCKET HEAD SCREW M8X28 | 1 | ||
| 21 | T1502CKE0050N | IGNITION COIL WITH CABLE | 1 | ||
| 22 | SP0906029 | BOLT, HEX FLANGE SH - M6X20 | 1 | В каталоге также: BOLT, HEX FLANGE HEAD SH-M6X20 | |
| 23 | TSF0401124 | WASHER 6.5X20X1.6 | 1 | В каталоге также: WASHER 6.5x20x1.6 | |
| 24 | T1501AKW0230N | BYPASS RESISTOR - ROS | 1 | В каталоге также: BYPASS RESISTOR ROS | |
| 25 | T1501AKE2050E | CABLE STRAP 200MM | 1 | ||
| 26 | SF0508001 | POP RIVET 3.2 DIA | 2 |
