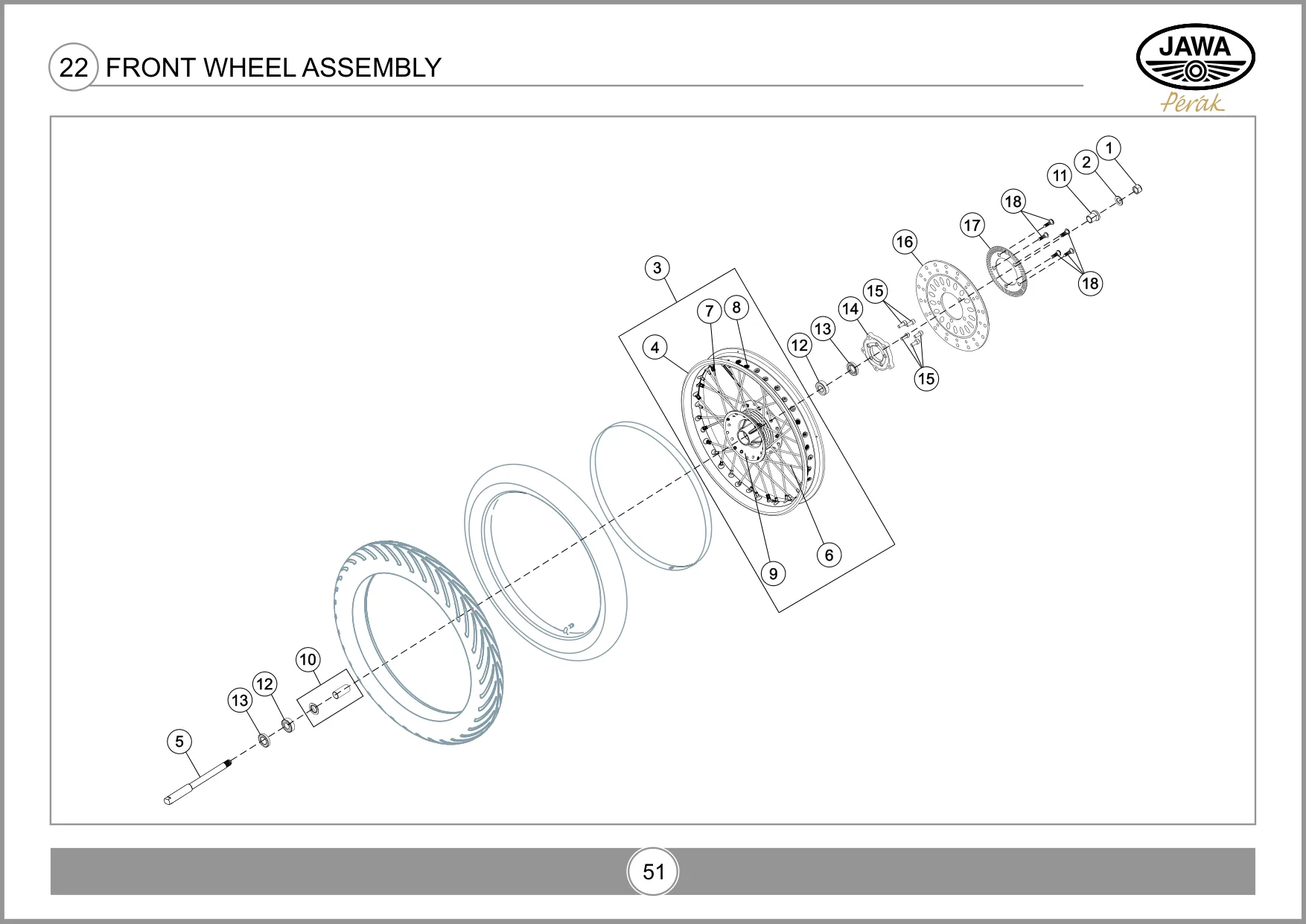

F07 — Колесо переднее
Позиций в узле: 18. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | TSF0318003 | SELF LOCK NUT M16 | 1 | ||
| 2 | TSF0400010 | WASHER 16 MM | 1 | ||
| 3 | T06010J30020N | RIM ASSY, FRONT, J3 | 1 | ||
| 4 | T0601AB10010N | ALLOY RIM, SPOKE WHEEL FRONT (MT2.50X18) | 1 | ||
| 5 | T0601GKW0040N | AXLE, FRONT WHEEL | 1 | ||
| 6 | T0601JJ30010N | INNER SPOKE, FRONT_J3 | 18 | ||
| 7 | T0601JJ30020N | OUTER SPOKE, FRONT_J3 | 18 | ||
| 8 | T0601JKW0030D | SPOKE NIPPLE | 36 | ||
| 9 | T0601HKW0020E | FRONT WHEEL HUB COMP, MACHINING | 1 | ||
| 10 | T0601CKW0050N | SPACER ASSY INNER, FRONT WHEEL | 1 | ||
| 11 | T0601CKW0020N | EXTERNAL SPACER RH | 1 | ||
| 12 | T0601DKW0021N | WHEEL BEARING 6203 (17x40x12) | 2 | ||
| 13 | T0601EKW0021N | FRONT DUST SEAL (A22x40x7) | 2 | ||
| 14 | T0601HKW0030E | COUPLER FOR FRONT HUB & DISC, MACHINING | 1 | ||
| 15 | SP0308009 | SOCKET HEAD SCREW M8X20 (10.9 GRADE) | 5 | ||
| 16 | T0601AKW0020N | FRONT DISC (RH, D=280) | 1 | ||
| 17 | T0602LKE0010N | TONER WHEEL FRONT | 1 | ||
| 18 | SF0200097 | SCREW SPECIAL M8X1.25X28XA2-70 | 5 |
