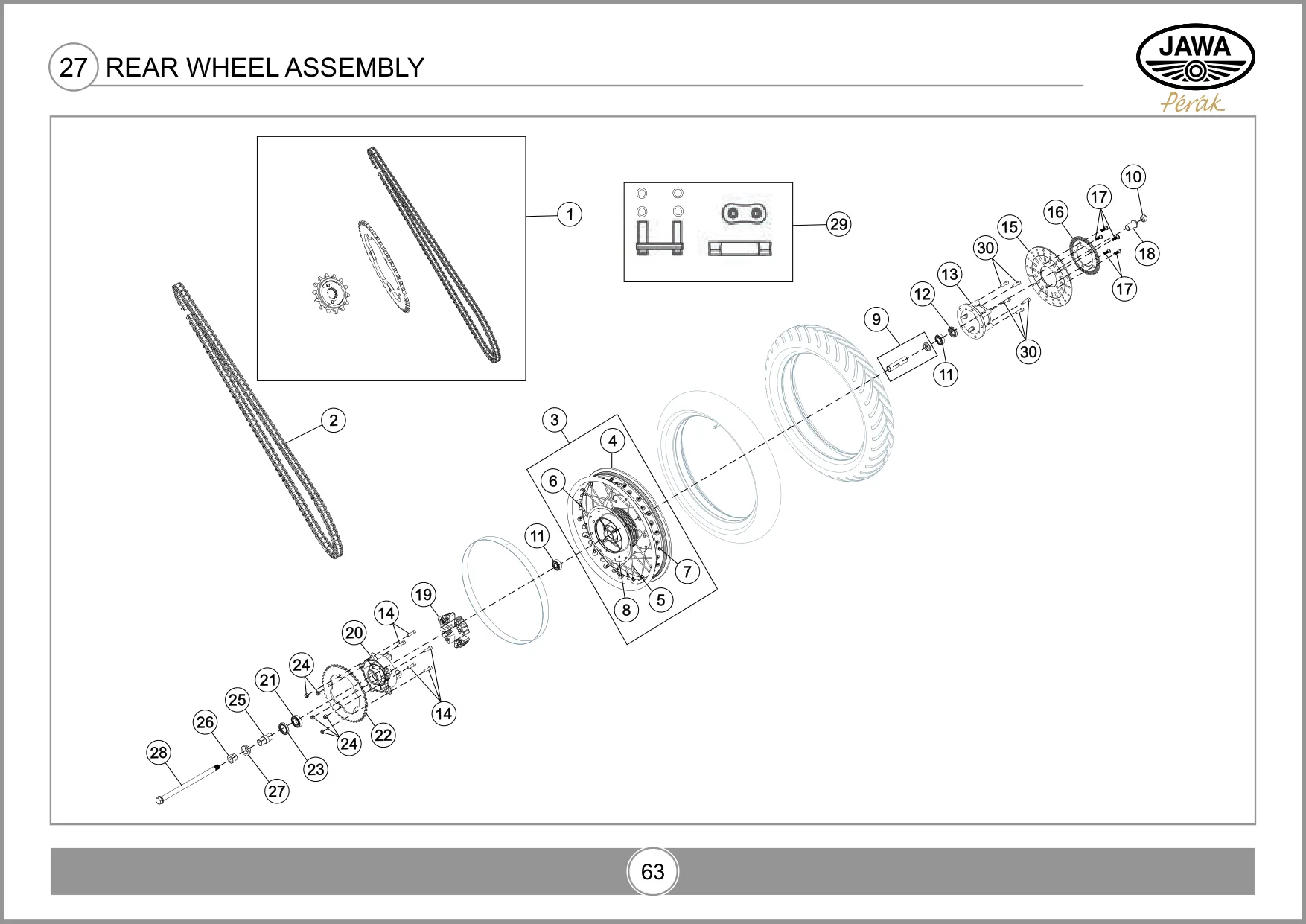

F12 — Колесо заднее
Позиций в узле: 30. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0215GJ30010N | KIT DRIVE CHAIN SPROCKET - J301 | 1 | ||
| 2 | T14080J30010N | CHAIN, FINAL DRIVE - 114 LINKS | 1 | ||
| 3 | T12010J30010N | RIM ASSEMBLY, REAR, J3 | 1 | ||
| 4 | T1201KB10010N | ALLOY RIM, REAR SPOKE WHEEL (4.25x17) | 1 | ||
| 5 | T1201KJ30010N | INNER SPOKE, REAR_J3 | 18 | ||
| 6 | T1201KJ30020N | OUTER SPOKE, REAR_J3 | 18 | ||
| 7 | T0601JKW0030D | SPOKE NIPPLE | 36 | В каталоге также: SPOKE NIPPLE (YELLOW) | |
| 8 | T1201HKW0020E | REAR WHEEL HUB FOR DISC, MACHINING_J1 | 1 | ||
| 9 | T1201CKW0050N | SPACER ASSY INNER, REAR WHEEL | 1 | ||
| 10 | TSF0318003 | SELF LOCK NUT M16 | 1 | ||
| 11 | T0601DKW0021N | WHEEL BEARING 6203 (17x40x12) | 2 | ||
| 12 | T0601EKW0021N | FRONT DUST SEAL (A22x40x7) | 1 | ||
| 13 | T1201HKW0030E | COUPLER FOR REAR HUB & DISC, MACHINING | 1 | ||
| 14 | SP0308023 | SOCKET HEAD SCREW M8X28 | 5 | ||
| 15 | T2501GKW0010N | REAR DISC (RH, D=240) | 1 | ||
| 16 | T0602LKE0010N | TONER WHEEL FRONT | 1 | ||
| 17 | SF0200097 | SCREW SPECIAL M8X1.25X28XA2-70 | 5 | ||
| 18 | T1201CKW0060N | SPACER REAR WHEEL (RH SIDE)_J1 REAR DISC | 1 | ||
| 19 | MH01270000500 | CUSH DRIVE | 4 | ||
| 20 | T12010KW0040E | CUSH DRIVE HOUSING, MACHINED | 1 | ||
| 21 | T1201DKW0031N | CUSH DRIVE HOUSING BEARING 6005(25X47X12) | 1 | ||
| 22 | T1201MKW0010N | CHAIN SPROCKET (REAR 45T) | 1 | ||
| 23 | T1201EKW0021N | REAR LH DUST SEAL A31x47x7 | 1 | ||
| 24 | MH01680001700 | SELF-TAPPING NUT FOR M8 (WHITE) | 5 | ||
| 25 | T1201CKW0080N | SPACER CUSH DRIVE HOUSING RH | 1 | ||
| 26 | T1201CKW0070N | SPACER CUSH DRIVE HOUSING LH | 1 | ||
| 27 | T1201CKW0020N | SPACER REAR WHEEL (LH SIDE) | 1 | ||
| 28 | SF0100083 | BOLT SPECIAL M16X1.5X305X10.9 | 1 | ||
| 29 | T14000KE0180N | CHAIN LINK KIT | 1 | ||
| 30 | SP0308023 | SOCKET HEAD SCREW M8X28 | 5 | В каталоге также: SOCKET HEAD SCREW M8X28 (WHITE) |
