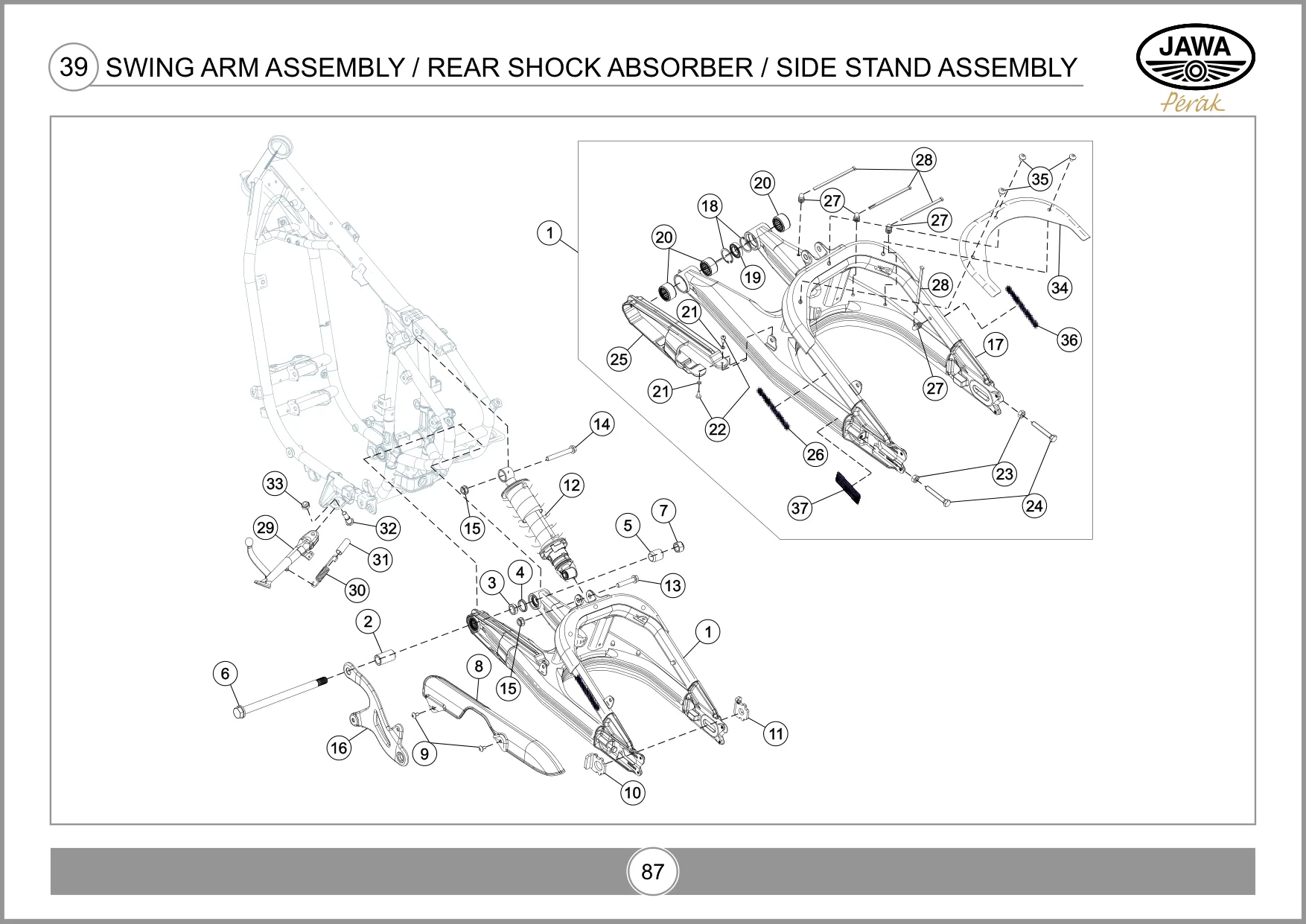

F24 — Маятник, амортизатор и подставка
Позиций в узле: 37. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T11010J30040N | SWINGARM SUB-ASSY_J301 | 1 | ||
| 2 | T1101AKW0010N | BUSH INNER LH | 1 | ||
| 3 | T1101AKW0020N | BUSH, INNER RH | 1 | В каталоге также: BUSH INNER RH | |
| 4 | T1101AKW0040N | COLLAR - BUSH INNER RH | 1 | ||
| 5 | T1101AKW0030N | BUSH OUTER RH | 1 | ||
| 6 | T1101CKW0010N | SWING ARM AXLE M16 | 1 | ||
| 7 | TSF0318003 | SELF LOCK NUT M16 | 1 | ||
| 8 | T1103AJ30010E | CHAIN COVER | 1 | ||
| 9 | SF0212023 | SCREW RDSKT M6X1X12XA2-70 | 2 | ||
| 10 | T08000KW0180N | CHAIN TENSION ADJUSTOR LH | 1 | ||
| 11 | T08000KW0190N | CHAIN TENSION ADJUSTOR RH | 1 | ||
| 12 | T11020J30010N | REAR SHOCK ABSORBER_J3 | 1 | ||
| 13 | TSF0102302 | FLANGE BOLT M10 X 50 | 1 | В каталоге также: FLANGED BOLT M10 X 50 | |
| 14 | TSF0102301 | FLANGE BOLT M10 X 75 | 1 | ||
| 15 | TSF0318009 | FLANGE U NUT M10x1.5 | 2 | В каталоге также: FLANGE U NUT M10X1.25 | |
| 16 | T2201BJ30010N | STAY EXHAUST MTG LH | 1 | ||
| 17 | T11010J30010W | SWING ARM_J301 | 1 | ||
| 18 | SF0602002 | CIRCLIP INT - LUG 30X1.2XPH | 2 | ||
| 19 | SP010100119 | BEARING DG BALL SR 17X30X7 | 1 | ||
| 20 | 6801CAP00021N | NEEDLE_ROLLER_BEARING | 3 | ||
| 21 | 94101-04700 | WASHER PLAIN M4X9X0.8 | 2 | В каталоге также: WASHER 4MM | |
| 22 | TSF0214025 | TAPPING SCREW M4X12 | 2 | ||
| 23 | SF0301245 | NUT HEX M8X1.25XX6.5X8XZN | 2 | В каталоге также: NUT HEX M8X1.25X6.8X8 | |
| 24 | SF0201389 | SCREW HEX M8X1.25X55X8.8 | 2 | ||
| 25 | T1103BJ30010N | CHAIN SLIDER | 1 | ||
| 26 | T13200J30010N | CAUTION STICKER | 1 | ||
| 27 | T25010KW0032N | CABLE TIE CLAMP, BRAKE HOSE_HELLERMANN | 4 | ||
| 28 | T1501AKE2052E | CABLE STRAP 200MM_HELLERMANN | 4 | ||
| 29 | T2301AJ30010W | SIDE STAND BLACK GLOSSY | 1 | ||
| 30 | T2302BKW0010N | SPRING SIDE STAND JAWA | 1 | ||
| 31 | T20000KW0140N | RUBBER SLEEVE, RETURN SPRING | 1 | В каталоге также: RUBBER SLEEVE , RETURN SPRING | |
| 32 | T2302BKW0020N | STEP BOLT SIDE STAND JAWA | 1 | ||
| 33 | MF01690000400 | NYLOC NUT 10 MM | 1 | В каталоге также: NYLOC NUT (M10 X 1.25P) | |
| 34 | T11010J30060N | SWING ARM COVER | 1 | ||
| 35 | SP0212001 | BUTTON HEAD SOCKET SCREW M6X10 | 3 | ||
| 36 | T13200J30170N | CAUTION STICKER - TAIL LAMP | 1 | ||
| 37 | T14000J30150N | NOISE LABEL STICKER | 1 |
