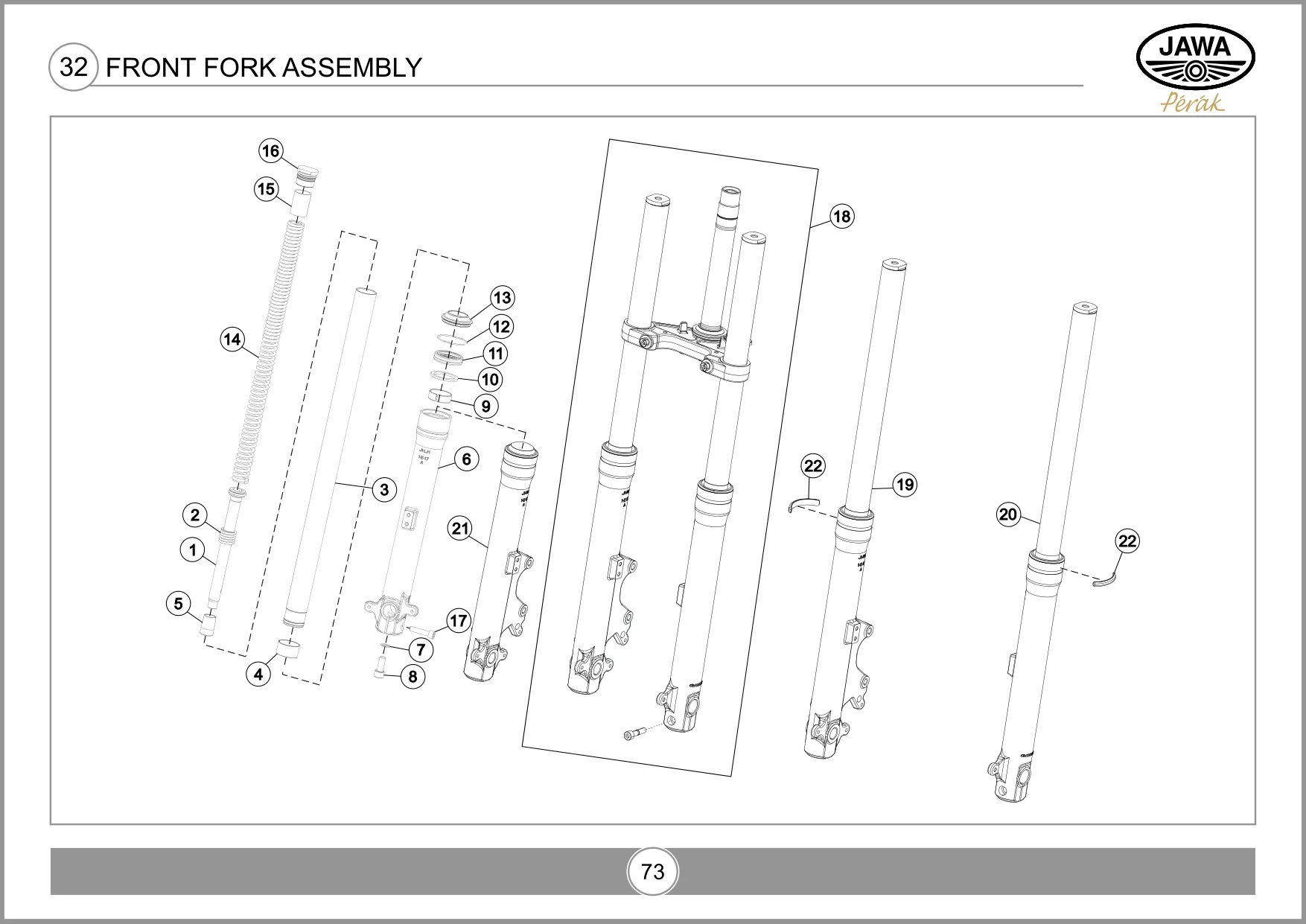

F17 — Вилка передняя
Позиций в узле: 22. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T05010J30030N | PISTON(PISTON+PISTON RING) | 1 | ||
| 2 | T05010J30040N | FRONT FORK REBOUND SPRING | 1 | ||
| 3 | T05010KW0090N | INNER TUBE ASSEMBLY | 1 | ||
| 4 | T05010KW0110N | SLIDE BUSH | 1 | ||
| 5 | T05010KW0120N | SPINDLE TAPER | 1 | ||
| 6 | T05010J30070N | OUTER TUBE LH | 1 | ||
| 7 | T05010KW0140N | GASKET | 1 | ||
| 8 | T05010KW0150N | BOLT M10X1 | 1 | ||
| 9 | T05010KW0160N | GUIDE BUSH | 1 | ||
| 10 | T05010KW0170N | DU BUSH WASHER | 1 | ||
| 11 | T05010KW0180N | OIL SEAL | 1 | ||
| 12 | T05010KW0190N | CIRCLIP(SANP-RING) | 1 | ||
| 13 | T05010KW0200N | DUST SEAL | 1 | ||
| 14 | T05010J30050N | SPRING-1 | 1 | ||
| 15 | T05010J30060N | SPACER | 1 | ||
| 16 | T05010KW0250N | BOLT CAP ASSLY | 1 | ||
| 17 | T05010KW0260N | SOCKET HEAD BOLT(M8X1.25X35) | 1 | ||
| 18 | T05010J30010N | FRONT FORK ASSY | 1 | ||
| 19 | T05030J30010N | FORK LEG ASSY LH | 1 | ||
| 20 | T05040J30010N | FORK LEG ASSY RH | 1 | ||
| 21 | T05010J30080N | OUTER TUBE RH | 1 | ||
| 22 | T13000KW0160N | BEADING FRONT FORK | 2 |
