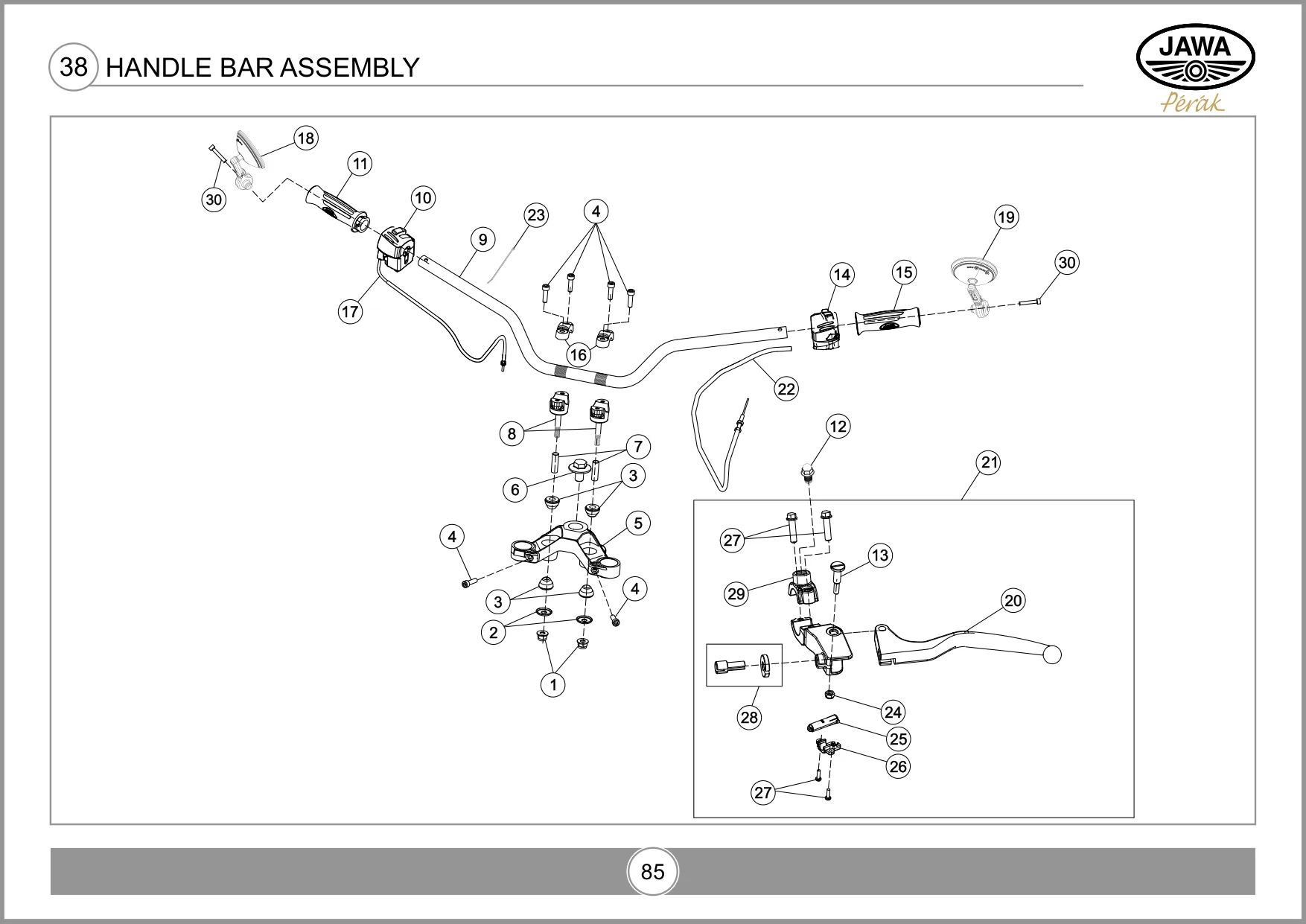

F23 — Руль
Позиций в узле: 30. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | SF0315017 | NUT HX NYL FL M10X1.50X13.5X10 | 2 | ||
| 2 | MH01800004000 | SHOT SILENT BLOCK | 2 | ||
| 3 | MH01800003900 | SILENT BLOCK | 4 | ||
| 4 | SP0308023 | SOCKET HEAD SCREW M8X28 | 6 | ||
| 5 | T05000KW0080N | UPPER BRACKET | 1 | ||
| 6 | SF0200115 | SCREW SPECIAL M16x1.25x25x8.8 | 1 | В каталоге также: SCREW SPECIAL M16X1.25X25X8.8 | |
| 7 | MH01790002300 | SPACER INNER SILENT BLOCK | 2 | ||
| 8 | T07010KW0020N | HANDLE BAR HOLDER LOWER | 2 | ||
| 9 | T07000KW0010E | HANDLE BAR TUBE | 1 | ||
| 10 | T1501MKE1020N | SWITCH ASSY RH | 1 | ||
| 11 | T0701EKW0010N | THROTTLE CONTROL TUBE WITH HANDLE GRIP RH | 1 | ||
| 12 | T0701CJ30010N | PLUG CAP LH | 1 | ||
| 13 | T0701CKW0070N | PIVOT LEVER LH MINUS HEAD | 1 | ||
| 14 | T1501MKE1010N | SWITCH ASSY LH_M103 | 1 | ||
| 15 | T0701DKW0010N | HANDLE GRIP LH | 1 | ||
| 16 | T07010KW0010N | HANDLE BAR HOLDER UPPER | 2 | ||
| 17 | T2401DKW0010N | THROTTLE CABLE ASSY | 1 | ||
| 18 | T14040KW0040N | MIRROR ASSY RH HANDLE END | 1 | ||
| 19 | T14040KW0030N | MIRROR ASSY LH HANDLE END | 1 | ||
| 20 | T0701CKE0060E | CLUTCH LEVER BLACK | 1 | ||
| 21 | T0701CKW0030E | CLUTCH LEVER ASSEMBLY | 1 | ||
| 22 | T2401HKW0010N | CLUTCH CABLE ASSEMBLY - BSVI | 1 | ||
| 23 | MF01840000300 | CABLE TIES | 2 | ||
| 24 | SF0302015 | NYLOC NUT M5 | 1 | ||
| 25 | T0702AKE0010N | CLUTCH SWITCH | 1 | ||
| 26 | MH01710001200 | HOLDER SUPPORT | 1 | ||
| 27 | SP0906039 | BOLT M6 X 32 | 4 | ||
| 28 | T07020KE0030N | CHECK NUT | 1 | ||
| 29 | T0701CKW0050N | HOLDER UPPER | 1 | ||
| 30 | SP0306020 | SOCKET HEAD SCREW M6X55 | 2 |
