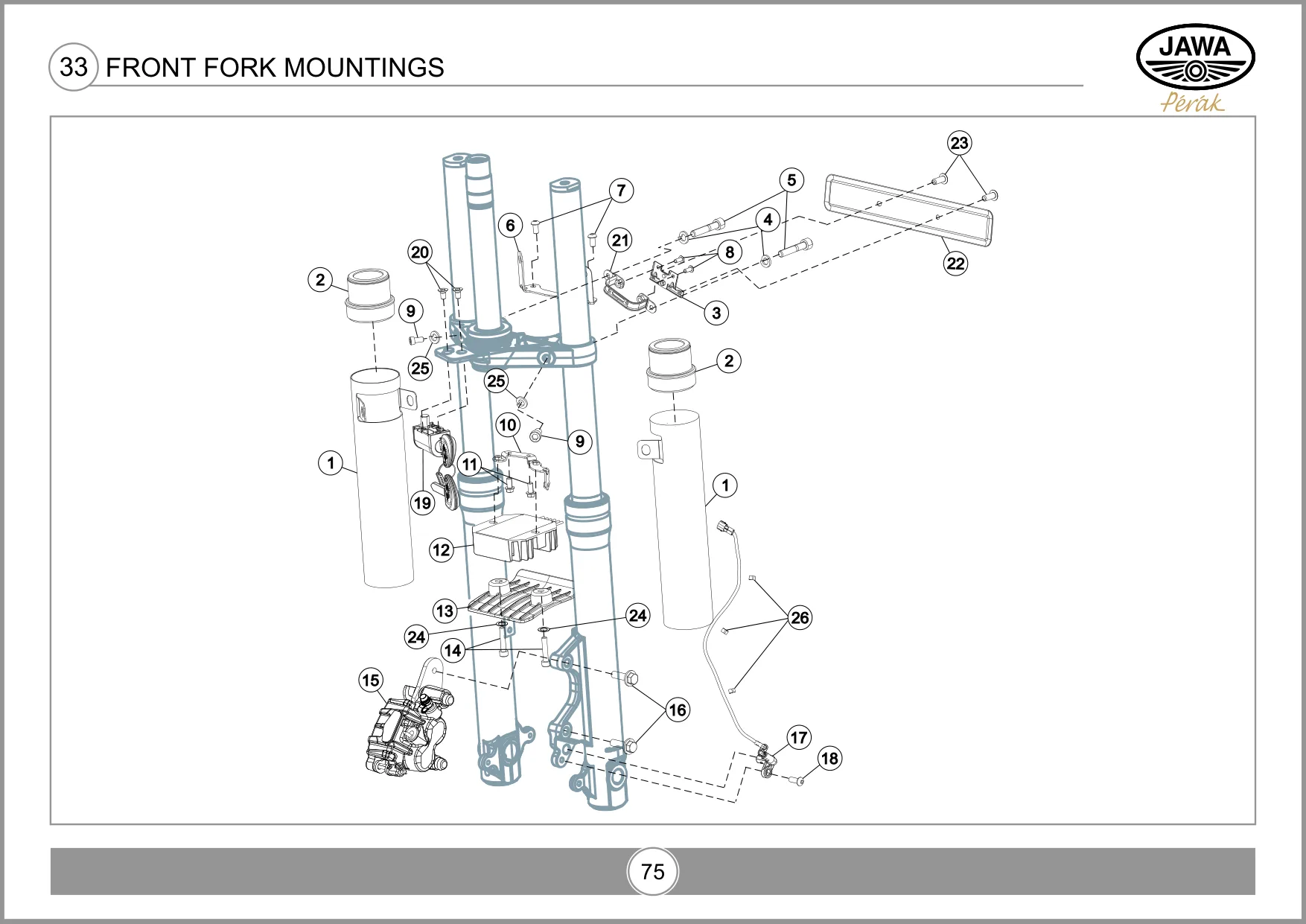

F18 — Крепление вилки (траверсы)
Позиций в узле: 26. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T05010J30020L | FRONT FORK COVER TUBE MATT CHARCOAL GREY | 2 | ||
| 2 | T05010KW0040N | GUIDE, FRONT FORK COVER TUBE | 2 | ||
| 3 | T08020KW0120W | FRONT NUMBER PLATE HOLDER_J1A | 1 | ||
| 4 | SF0402030 | WASHER SPRING L M8x14.8x2xZG | 2 | ||
| 5 | SP0708010 | SOCKET HEAD SCREW M8x16 | 2 | ||
| 6 | T13160KW0070N | BRACKET INDICATOR MOUNTING FRONT | 1 | ||
| 7 | SP0706018 | SCREW TBEI M6X12 UNI 7380 | 2 | ||
| 8 | TSF0100005 | SPECIAL, BOLT 8mm | 2 | ||
| 9 | SP0708010 | SOCKET HEAD SCREW M8x16 | 2 | ||
| 10 | T08000KW0440N | RR MOUNTING BRACKET | 1 | ||
| 11 | 95701-06012-00 | BOLT FL.6 X 12 | 2 | ||
| 12 | T1501CKW0010N | REGULATOR RECTIFIER-J1 | 1 | ||
| 13 | T13000KW0060N | AIR DEFLECTOR | 1 | В каталоге также: AIR DEFLECTOR RR MNTG | |
| 14 | 95701-06030-00 | BOLT FLANGE 6X30 | 2 | ||
| 15 | T1901KJ30010N | CALIPER FRONT BRAKE RH J3 | 1 | ||
| 16 | SF0102125 | BOLT HEX FL M8X1.25X35X8.8 | 2 | ||
| 17 | T0602FKE0010N | SPEED SENSOR FRONT WHEEL_M104 | 1 | ||
| 18 | TSF0224080 | BUTTON HEAD SOCKET SCREW M6X10 | 1 | В каталоге также: SOCKET HEAD SCREW M6x16 BLACK (LOCKTITE) | |
| 19 | T08000KW0230N | STEERING LOCK MINDA | 1 | ||
| 20 | SF0211020 | SCREW FTCS CR SL M6X1X11.5X8.8 | 2 | ||
| 21 | T05010KW0280N | HOLDER NO PLATE MTG | 1 | ||
| 22 | T14060KG0060N | FRONT NUMBER PLATE | 1 | ||
| 23 | SF0212024 | SCREW RDSKT M5X0.8X12XA2-70 | 2 | ||
| 24 | SF0401090 | WASHER PLAIN M6X18X1.6 | 2 | ||
| 25 | SF0402030 | WASHER SPRING L M8x14.8x2xZG | 2 | ||
| 26 | T1501AKW0070N | DOUBLE CABLE CLIP_REV0_L1_A2 | 6 |
