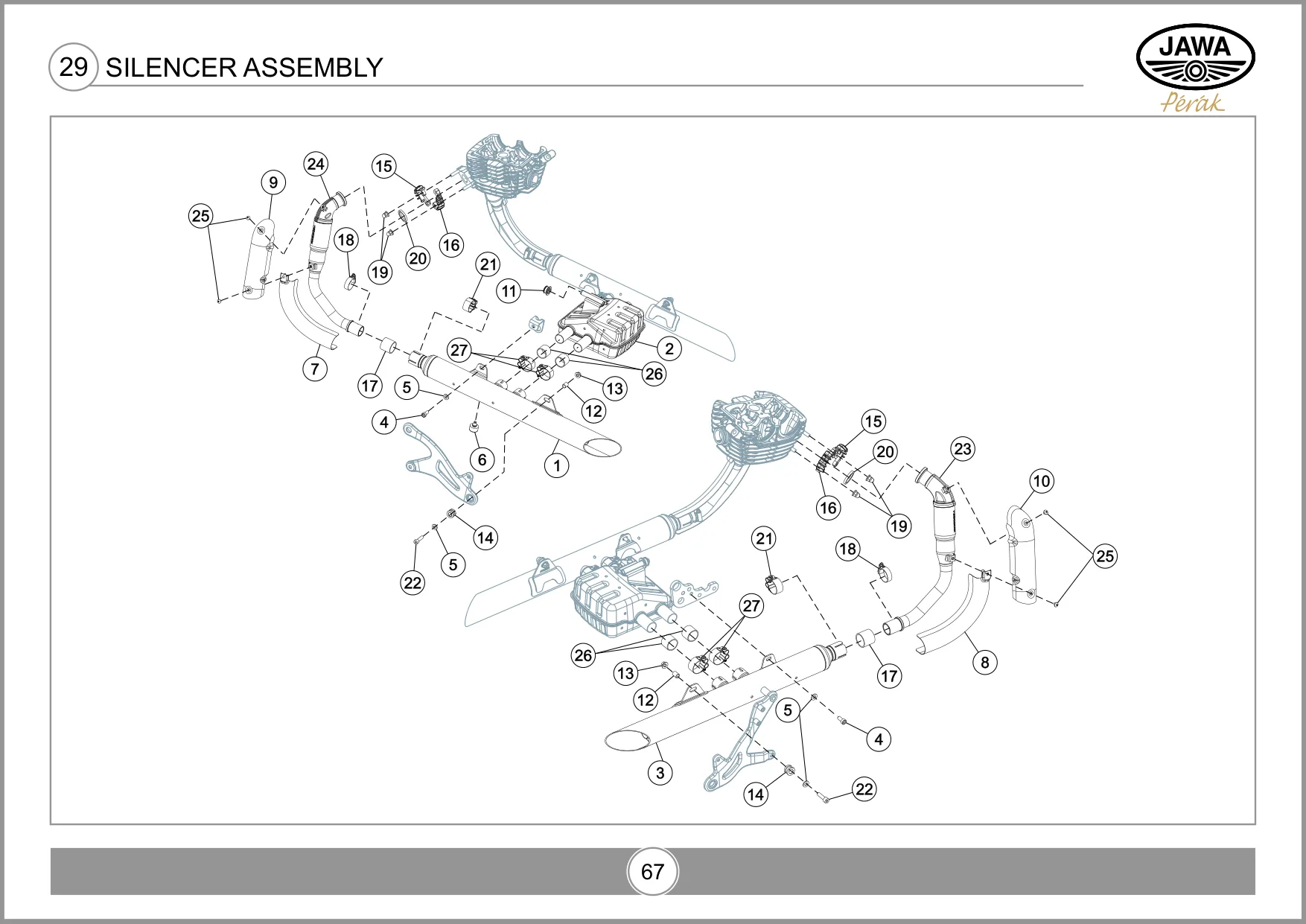

F14 — Глушитель
Позиций в узле: 27. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0302AJ30310N | BODY MUFFLER ASSY LH | 1 | ||
| 2 | T0302AJ30300N | EXPANSION CHAMBER ASSY | 1 | ||
| 3 | T0302AJ30360N | BODY MUFFLER ASSY RH | 1 | ||
| 4 | SP0224002 | SOCKET HEAD SCREW M8X18 (BLACK) | 2 | ||
| 5 | TSF0401129 | WASHER M8 (8.4x17x1.6) | 4 | В каталоге также: WASHER M8 (8.4X17X1.6) | |
| 6 | T0901HAE1900N | MAIN STAND STOPPER RUBBER | 1 | В каталоге также: RUBBER STOPPER FOR MAIN STAND | |
| 7 | T0302BJ30020N | STYLE SHIELD BOTTOM LH | 1 | ||
| 8 | T0302BJ30010N | STYLE SHIELD BOTTOM RH | 1 | ||
| 9 | T03000KW0540E | STYLE SHIELD TOP LH | 1 | ||
| 10 | T03000KW0550E | STYLE SHIELD TOP RH | 1 | ||
| 11 | T0302CJ30030N | GROMMET GUIDE SUPPORT | 1 | ||
| 12 | T0302CKU0030N | SLEEVE SILENCER MOUNTING REAR (M102) | 2 | ||
| 13 | SF0303059 | NUT HEX FL PR M8X1.25X8X8 | 2 | ||
| 14 | T0302CKU0020N | GROMMET SILENCER MOUNTING REAR (M102) | 2 | ||
| 15 | T0304CKW0070E | EXHAUST FLANGE BOTTOM | 2 | ||
| 16 | T0304CKW0060E | EXHAUST FLANGE TOP | 2 | ||
| 17 | T0302BKE0450N | GASKET | 2 | ||
| 18 | SF0703002 | HOSE CLIP W M35X0.7X12.7XSS PL | 2 | ||
| 19 | SF0300075 | NUT SPECIAL M8X1.25X17X6 | 4 | В каталоге также: NUT SPECIAL M8X1.25X17X8 | |
| 20 | T0304BKW0010N | EXHAUST GASKET | 2 | ||
| 21 | T0302CKW0250N | EXHAUST CLAMP M40 | 2 | ||
| 22 | SP0308023 | SOCKET HEAD SCREW M8X28 | 2 | ||
| 23 | T03000J30050N | HEADER PIPE RH ASSY | 1 | ||
| 24 | T03000J30040N | HEADER PIPE LH ASSY | 1 | ||
| 25 | SP0705003 | PAN HEAD SCREW M5X8 (TBEI) SS | 4 | В каталоге также: SCREW TBEI M5X8 UNI-ISO 7380 | |
| 26 | T0304BKW0020N | GRAPHITE GASKET | 4 | ||
| 27 | T0302CJ30040N | EXHAUST CLAMP M36 | 4 |
