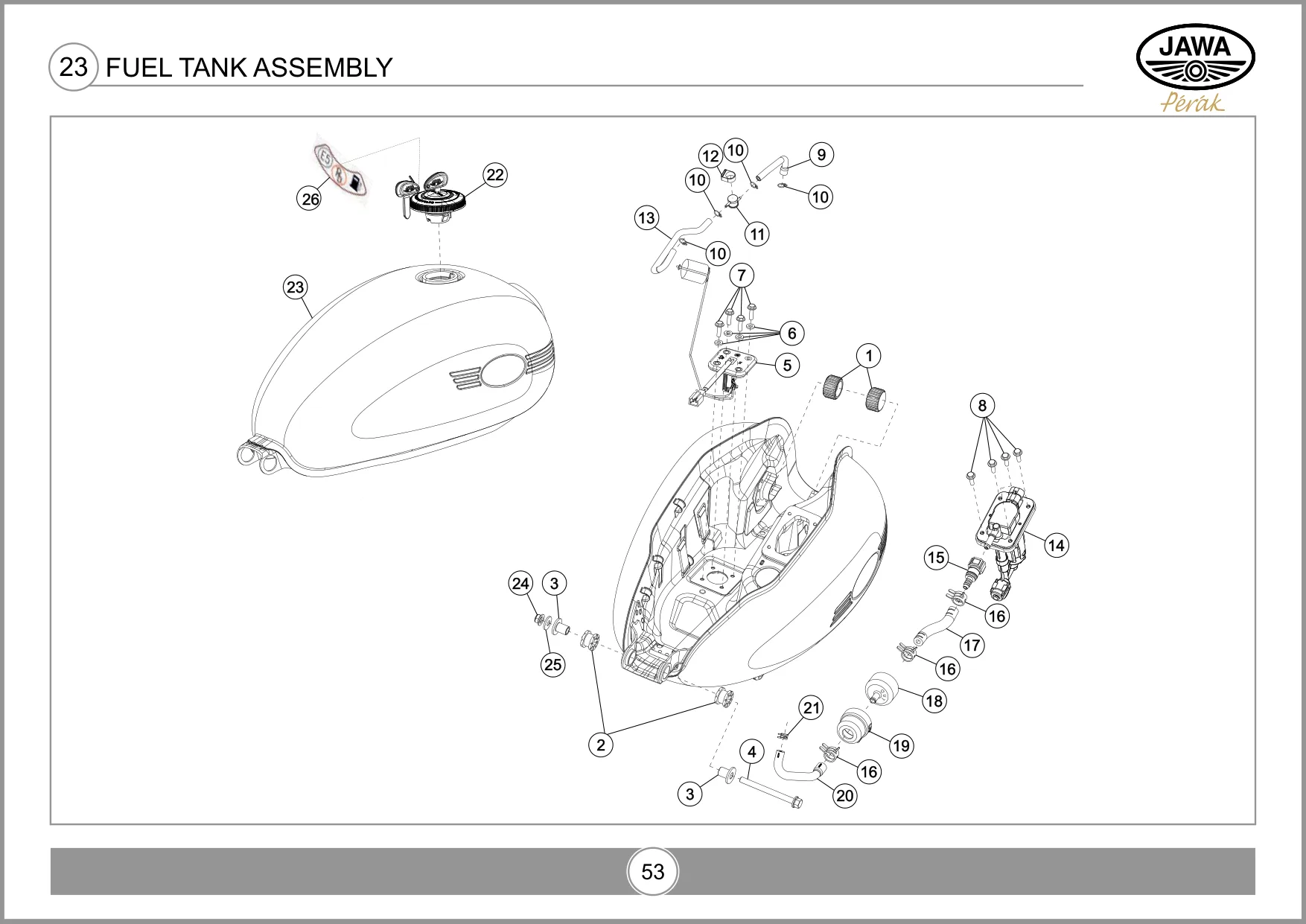

F08 — Бак топливный
Позиций в узле: 28. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T10010KW0180N | DAMPER TANK FRONT MOUNTING | 2 | В каталоге также: DAMPER TANK FRONT MOUNTING DIA. 31 MM | |
| 1.1 | T10000Y50200N | DAMPER TANK FRONT MOUNTING DIA. 41 MM | 2 | ||
| 2 | T10010J30040N | GROMMET TANK MOUNTING BRACKET REAR | 2 | ||
| 3 | T10000J30010N | COLLAR FUEL TANK MOUNTING | 2 | ||
| 4 | SF0105021 | BOLT SOCKET M8X1.25X90X8.8 | 1 | ||
| 5 | T1501PKW0010N | FUEL SENSOR UNIT | 1 | ||
| 6 | T10030KM0060N | WASHER (FUEL GAUGE ASSY) | 4 | ||
| 7 | SF0102046 | HEX FLANGE BOLT M5X18 | 4 | ||
| 8 | TSF0102272 | FUEL GAUGE-FLANGE BOLT (M5×12) | 4 | ||
| 9 | T10000KW0100N | HOSE TANK TO ROLLOVER VALVE | 1 | ||
| 10 | 95002-02080 | CLIP TUBE B8 | 4 | ||
| 11 | T10000KW0040N | ROLL OVER VALVE | 1 | ||
| 12 | T10000KW0170N | ROLL OVER VALVE GROMMET | 1 | ||
| 13 | T10010KW0190N | HOSE ROLLOVER VALVE TO CANISTER | 1 | ||
| 14 | T10050KW0010N | FUEL PUMP PLASTIC | 1 | ||
| 15 | T10050KE0050N | QUICK FUEL CONNECTOR 2 | 1 | ||
| 16 | T10050KE0030N | SPRING BAND CLAMP DIA 14 | 3 | ||
| 17 | T10000KW0020N | FUEL TUBE OUTLET | 1 | ||
| 18 | MH00340000100 | FUEL FILTER | 1 | ||
| 19 | MH00900000800 | SUPPORT FILTER | 1 | ||
| 20 | T10010KW0140N | FUEL TUBE INLET | 1 | ||
| 21 | T10050KE0100N | SPRING BAND CLAMP DIA 11 | 1 | ||
| 22 | T10020KW0050N | FUEL TANK CAP WITH KEY – JAWA J1B | 1 | ||
| 23 | T10010J30100L | FUEL TANK ASSLY E5 MATT CHARCOAL GREY | 1 | ||
| 23.1 | T10010J30260E | FUEL TANK ASSEMBLY DUAL TONE_EURO-5+ | 1 | ||
| 24 | SF0300075 | NUT SPECIAL M8X1.25X17X6 | 1 | В каталоге также: NUT SPECIAL M8X1.25X17X8 | |
| 25 | TSF0401129 | WASHER M8 (8.4x17x1.6) | 1 | В каталоге также: WASHER M8 (8.4X17X1.6) | |
| 26 | T10020KW0020N | FUEL TYPE LABEL STICKER | 1 |
