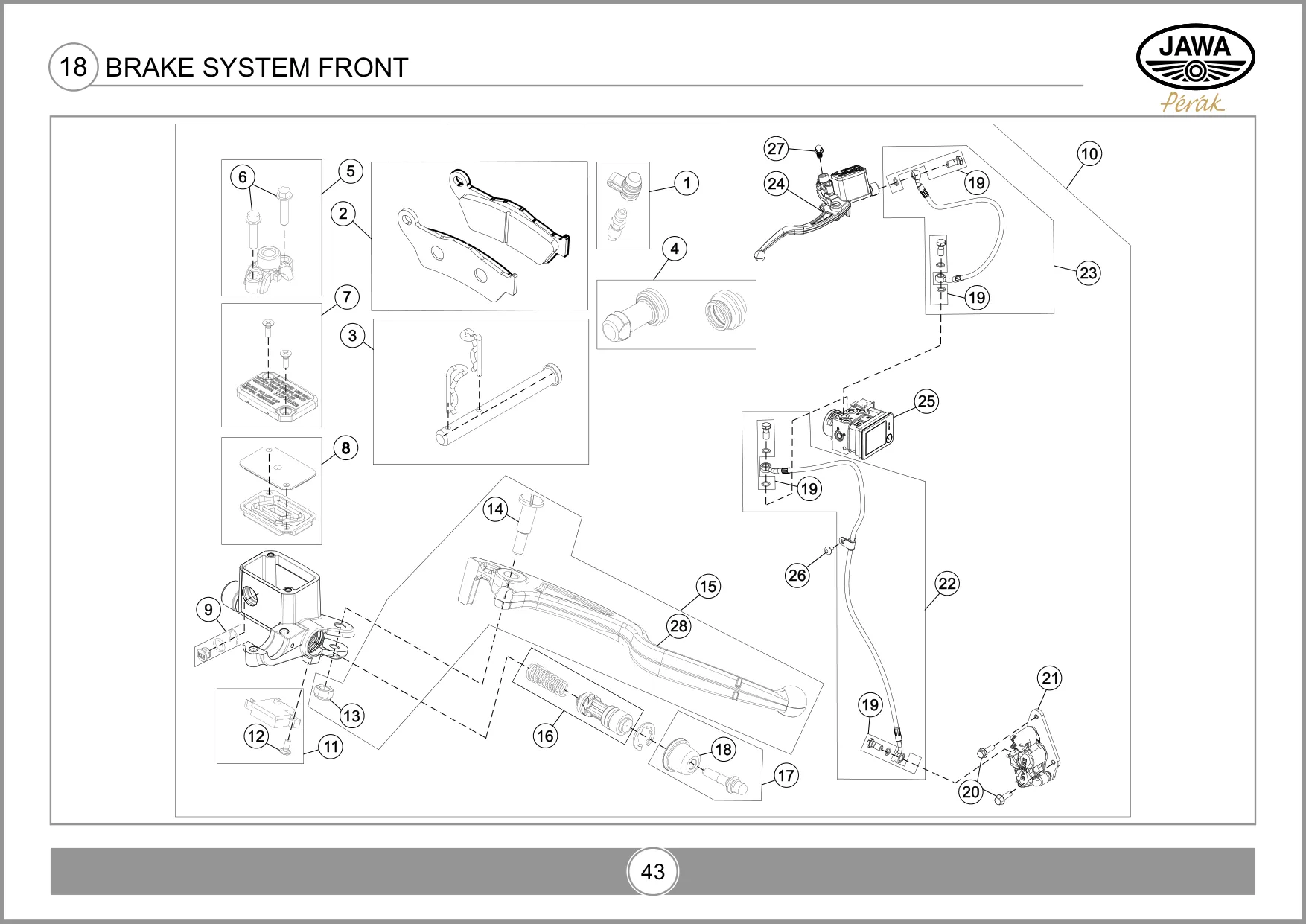

F03 — Тормоз передний
Позиций в узле: 28. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T1901KKW0020N | BLEEDER KIT | 1 | ||
| 2 | T2501BJ30010N | FRONT BRAKE PAD KIT | 1 | ||
| 3 | T1901KKW0030N | PAD SPRING KIT | 1 | ||
| 4 | T1901KKW0060N | BOOT KIT | 1 | ||
| 5 | T1901HKW0060N | MASTER CYLINDER UPPER HOLDER | 1 | ||
| 6 | T1901HKW0050N | BOLT MASTER CYLINDER | 2 | ||
| 7 | T1901HKW0020N | RESERVOIR KIT | 1 | ||
| 8 | T1901HKW0100N | DIAPHRAM KIT | 1 | ||
| 9 | T1901HKW0090N | OIL LEVEL WINDOW KIT | 1 | ||
| 10 | T19010KW0010N | BRAKE ASSY FRONT COMPLETE | 1 | ||
| 11 | T1901HKW0070N | FRONT BRAKE SWITCH ASSY | 1 | ||
| 12 | T1901HKW0080N | BRAKE SWITCH SCREW | 1 | ||
| 13 | T1901CKW0030N | FRONT BRAKE LEVER NUT | 1 | ||
| 14 | T1901CKW0020N | FRONT BRAKE LEVER BOLT | 1 | ||
| 15 | T2501DJ30020N | FRONT BRAKE LEVER KIT | 1 | ||
| 16 | T1901HKW0030N | MASTER CYLINDER PISTON KIT | 1 | ||
| 17 | T1901KKW0100N | PUSH ROD ASSLY KIT | 1 | ||
| 18 | T1901HKW0110N | RUBBER_MASTER CYLINDER | 1 | ||
| 19 | T1901JKW0020N | BANJO BOLT KIT | 4 | ||
| 20 | SF0102343 | BOLT HEX FL M8X1.25X35X8.8 | 2 | ||
| 21 | T1901KJ30010N | CALIPER FRONT BRAKE RH J3 | 1 | ||
| 22 | T2501HKW0040N | HOSE FRONT ABS TO CALIPER_KIT | 1 | ||
| 23 | T2501HKW0030N | HOSE FRONT M/C TO ABS_KIT | 1 | ||
| 24 | T2501DJ30010N | FRONT MASTER CYLINDER, J3 | 1 | ||
| 25 | T2501AKW0021N | WET ABS UNIT_J1 DUAL CHANNEL | 1 | ||
| 26 | SF0212023 | SCREW RDSKT M6X1X12XA2-70 | 1 | ||
| 27 | T0701CJ30020N | PLUG CAP RH | 1 | ||
| 28 | T2501DJ30030N | BRAKE LEVER, FRONT_J3 | 1 |
