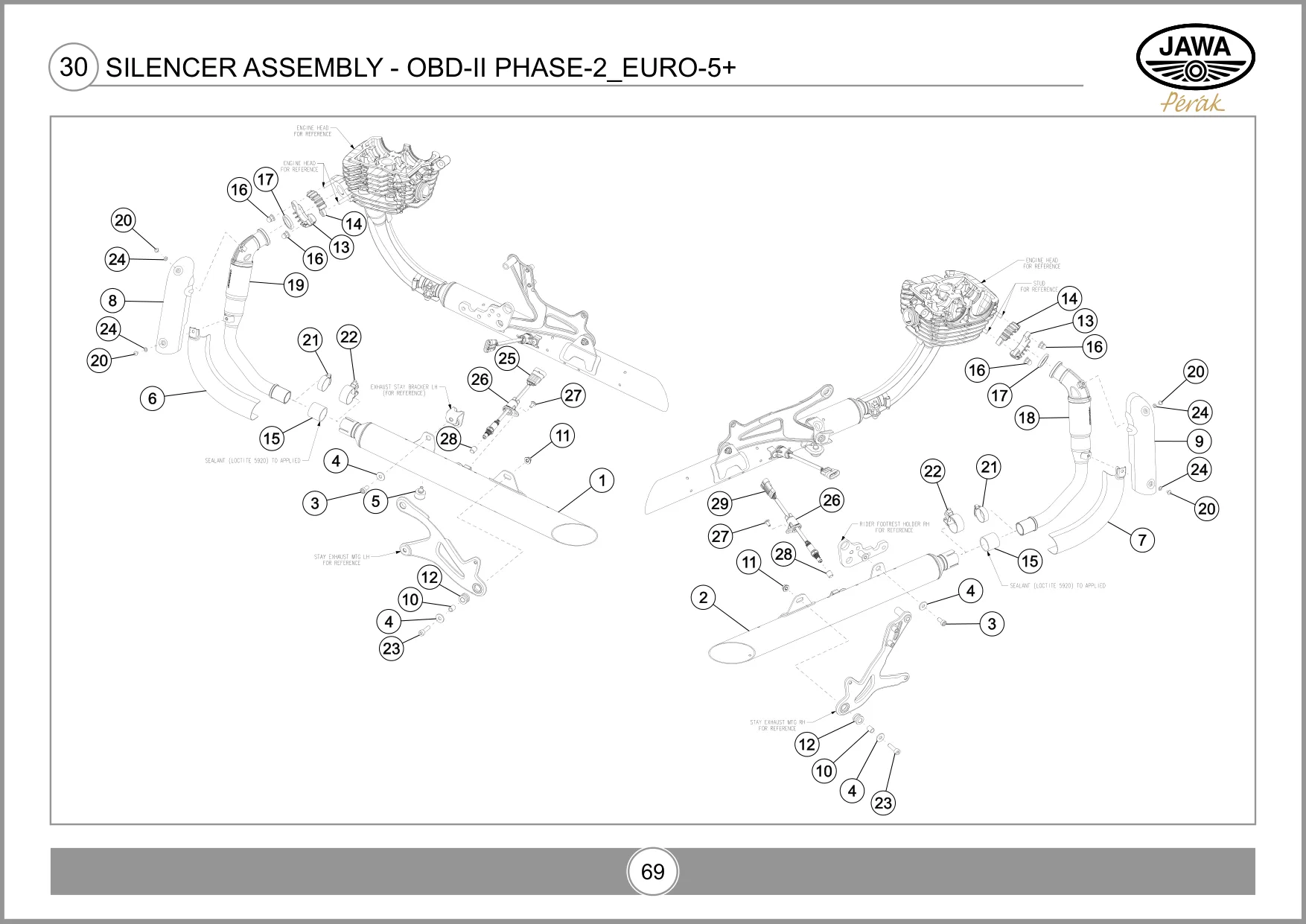

F15 — Глушитель (OBD-II Phase-2 EURO-5+)
Позиций в узле: 29. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0302AJ30720N | BODY MUFFLER ASSY LH | 1 | ||
| 2 | T0302AJ30730N | BODY MUFFLER ASSY RH | 1 | ||
| 3 | SP0224002 | SOCKET HEAD SCREW M8X18 (BLACK) | 2 | ||
| 4 | SF0401061 | WASHER PLAIN M8X22X2.3 | 4 | ||
| 5 | T0901HAE1900N | MAIN STAND STOPPER RUBBER | 1 | ||
| 6 | T0302BJ30020N | STYLE SHIELD BOTTOM LH | 1 | ||
| 7 | T0302BJ30010N | STYLE SHIELD BOTTOM RH | 1 | ||
| 8 | T03000KW0540E | STYLE SHIELD TOP LH | 1 | В каталоге также: STYLE SHIELD TOP LH (BLACK) | |
| 9 | T03000KW0550E | STYLE SHIELD TOP RH | 1 | В каталоге также: STYLE SHIELD TOP RH (BLACK) | |
| 10 | T0302CKU0030N | SLEEVE SILENCER MOUNTING REAR (M102) | 2 | В каталоге также: SLEEVE SILENCER MTG REAR (M102) | |
| 11 | SF0303059 | NUT HEX FL PR M8X1.25X8X8 | 2 | ||
| 12 | T0302CKU0020N | GROMMET SILENCER MOUNTING REAR (M102) | 2 | В каталоге также: GROMMET SILENCER MTG. REAR(M102) | |
| 13 | T0304CKW0070T | EXHAUST FLANGE BOTTOM (T) | 2 | ||
| 14 | T0304CKW0060T | EXHAUST FLANGE TOP (T) | 2 | ||
| 15 | T0302BKE0450N | GASKET | 2 | ||
| 16 | SF0300075 | NUT SPECIAL M8X1.25X17X6 | 4 | В каталоге также: NUT SPECIAL M8X1.25X17X8 | |
| 17 | T0304BKW0010N | EXHAUST GASKET | 2 | ||
| 18 | T0302AJ30640N | HEADER PIPE ASSEMBLY RH | 1 | ||
| 19 | T0302AJ30630N | HEADER PIPE ASSEMBLY LH | 1 | ||
| 20 | SF0212035 | SCREW RDSKT M5X0.8X8X8.8 | 4 | ||
| 21 | SF0703002 | HOSE CLIP W M35X0.7X12.7XSS PL | 2 | ||
| 22 | T0302CKW0250N | EXHAUST CLAMP M40 | 2 | ||
| 23 | SF0224176 | SCREW SOCKET M8X1.25X28X10.9 | 2 | ||
| 24 | SF0401445 | WASHER PLAIN M5X10X1 | 4 | ||
| 25 | T15000J10040N | LAMBDA SENSOR DOWN STREAM | 1 | ||
| 26 | T0302AJ10170E | COVER LAMBDA SENSOR (BLACK) | 2 | ||
| 27 | SF0212023 | SCREW RDSKT M6X1X12XA2-70 | 2 | В каталоге также: SCREW RDSKT M5X1X12XA2-70 | |
| 28 | SF1104035 | PLUG TPR SK MC12X1.25 ST SL | 2 | ||
| 29 | T15000J10010N | LAMBDA SENSOR DOWN STREAM RH | 1 |
