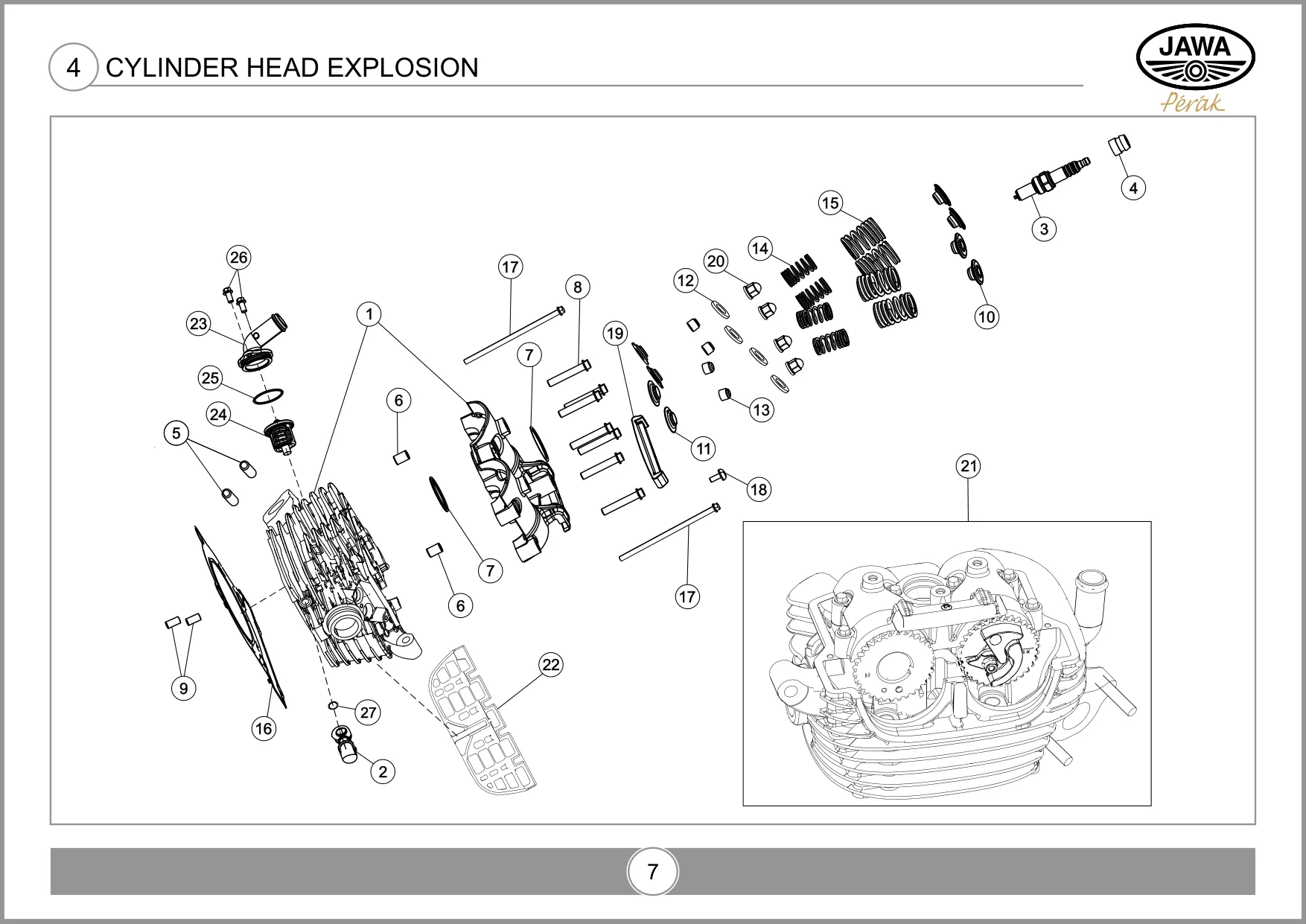

E04 — Головка цилиндра
Позиций в узле: 27. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0202BVG0020N | SUB ASM CYLINDER HEAD & CAM SHAFT HOLDER C334 | 1 | ||
| 2 | T1502HUF0060N | WATER SENSOR | 1 | ||
| 3 | T1502DUF0070N | SPARK PLUG | 1 | ||
| 4 | T02010UF0020N | GROMATE, SPARK PLUG | 1 | ||
| 5 | T0202BVG0040N | STUD MUFFLER (M8X48) | 4 | ||
| 6 | MJ01760000500 | DOWEL PIN, HOLLOW (Ø8*12) | 2 | ||
| 7 | T18040UF0090N | O-RING, CAMSHAFT HOLDER | 2 | ||
| 8 | TSF0102290 | BOLT, HEX FLANGE SH - M6X35 | 7 | ||
| 9 | T0202AUF0820N | DOWEL PIN, SOLID (Ø6X14) | 2 | ||
| 10 | T0202BUF0420N | UPPER VALVE SPRING RETAINER | 4 | ||
| 11 | T0202BUF0410N | LOWER VALVE SPRING RETAINER | 4 | ||
| 12 | T0202BUF1660N | HEAD NUT WASHER CYLINDER HEAD (Ø10.2*Ø18*2) | 4 | ||
| 13 | T0208BUF0510N | VALVE STEM SEAL | 4 | ||
| 14 | T0202BUF0580N | VALVE SPRING INNER | 4 | ||
| 15 | T0202BUF0430N | VALVE SPRING OUTER | 4 | ||
| 16 | T02090VG0010N | GASKET CYLINDER HEAD 334 | 1 | ||
| 17 | TSF0102293 | BOLT, HEX FLANGE SH - M6X130 (HEAD MOUNT) | 2 | ||
| 18 | 93500-04010-OH | PAN HEAD SCREW (M4*10) | 1 | ||
| 19 | T0208AUF0640N | GUIDE CHAIN (TOP) WITH INSERT | 1 | ||
| 20 | T0202BUF2140N | HEAD NUT CAP TYPE | 4 | ||
| 21 | T0202BVG0010N | ASM CYLINDER HEAD C334 | 1 | ||
| 22 | T0209AVE0020N | RUBBER GROMMET CYLINDER HEAD | 1 | ||
| 23 | T04000VE0010N | COVER THERMOSTAT | 1 | ||
| 24 | T0401EVE0030N | THERMOSTAT VALVE TWO WAY | 1 | ||
| 25 | T0209BVE0020N | O RING THEMOSTAT 1.78X33.05 | 1 | ||
| 26 | SP0906041 | BOLT, HEX FLANGE SH-M6X12 | 2 | ||
| 27 | SF0601062 | WASHER | 1 |
