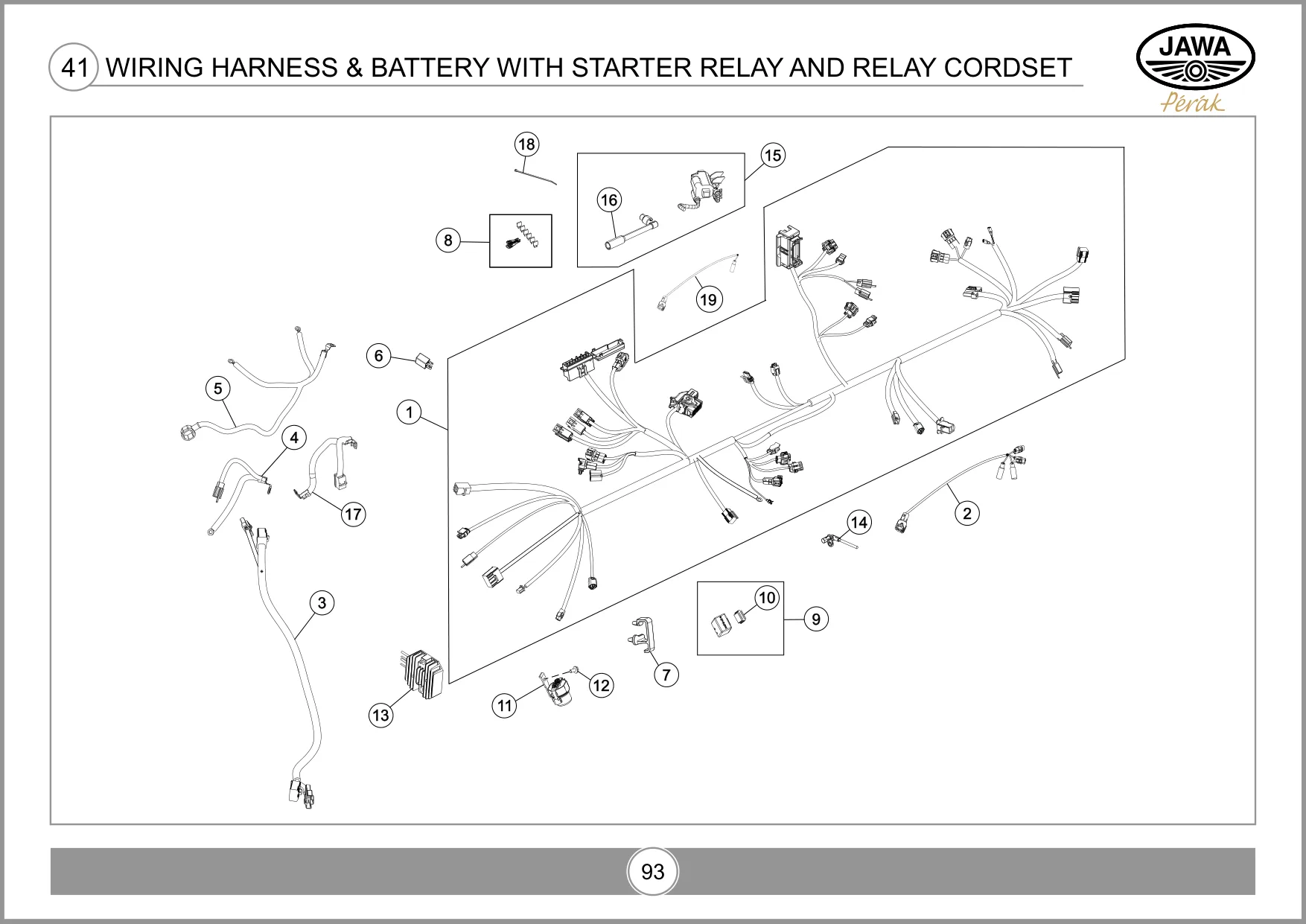

F26 — Проводка и АКБ
Позиций в узле: 24. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T1501AJ30010N | WIRING HARNESS_J301 | 1 | ||
| 2 | T1501AJ30020N | WIRING REAR LAMPS_J301 | 1 | ||
| 3 | T1501AKW0050N | WIRING RR UNIT | 1 | В каталоге также: WIRING_RR UNIT | |
| 4 | T1501AKW0110N | WIRING _BATTERY NEGATIVE J1_DABS | 1 | ||
| 5 | T1503BKW0010N | WIRING_STARTER MOTOR | 1 | ||
| 6 | T1501FKW0120N | MINI RELAY (RESISTOR TYPE) | 3 | ||
| 7 | T1501AKW0090N | CLAMP_ WIRING HARNESS | 1 | ||
| 8 | T1501AKE2170N | SPARE FUSE KIT ASSY | 1 | ||
| 8.1 | T1501AY50050N | FUSE 5A MINI | 1 | ||
| 8.2 | T1501AY50060N | FUSE 10A MINI | 1 | ||
| 8.3 | T1501AY50070N | FUSE 15A MINI | 1 | ||
| 8.4 | T1501AY50080N | FUSE 20A MINI | 1 | ||
| 8.5 | T1501AY50090N | FUSE 30A MINI | 1 | ||
| 9 | MF00660000100 | WINKER RELAY WITH HOLDER | 1 | ||
| 10 | MF01910000200 | HOLDER (FOR WINKER RELAY) | 1 | ||
| 11 | T1503CKE0730E | STARTER RELAY | 1 | ||
| 12 | 95701-06012-00 | BOLT FL.6 X 12 | 1 | В каталоге также: BOLT FL.6X12 | |
| 13 | T1501CKW0010N | REGULATOR RECTIFIER-J1 | 1 | ||
| 14 | T0602FKE0010N | SPEED SENSOR FRONT WHEEL_M104 | 2 | ||
| 15 | T1502CKE0050N | IGNITION COIL WITH CABLE | 1 | ||
| 16 | T1502FUF0330N | NOISE SUPPRESOR CAP | 1 | ||
| 17 | T1503AJ30010N | WIRING BATTERY POSITIVE_J301 | 1 | ||
| 18 | T1501AKE2050E | CABLE STRAP 200MM | 17 | В каталоге также: CABLE TIES | |
| 19 | T1501RKW0070N | WIRING DAIGNOSTICS 3_E5 | 1 |
