Главная → Jawa Perak Euro 5 → F27 Наклейки
F27 — Наклейки

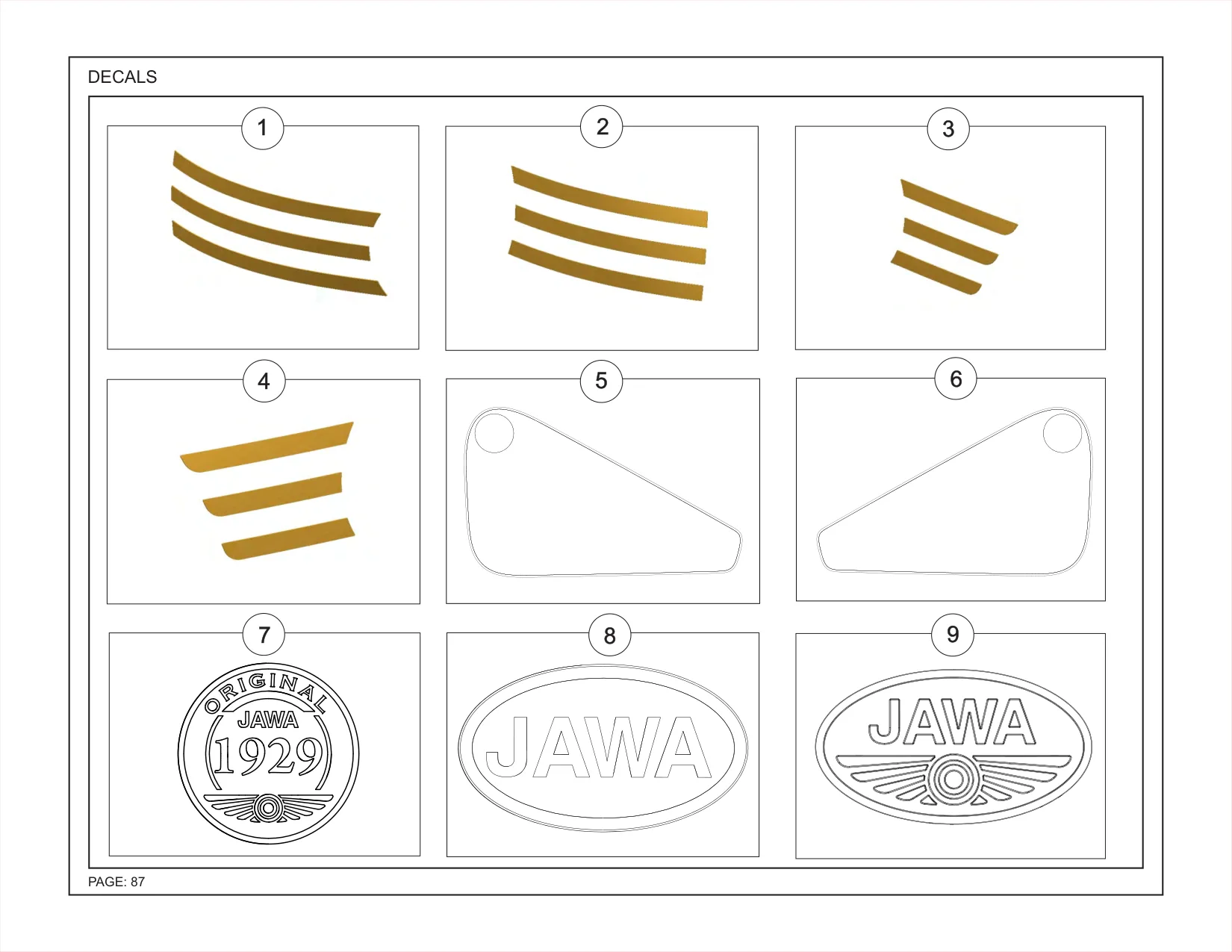

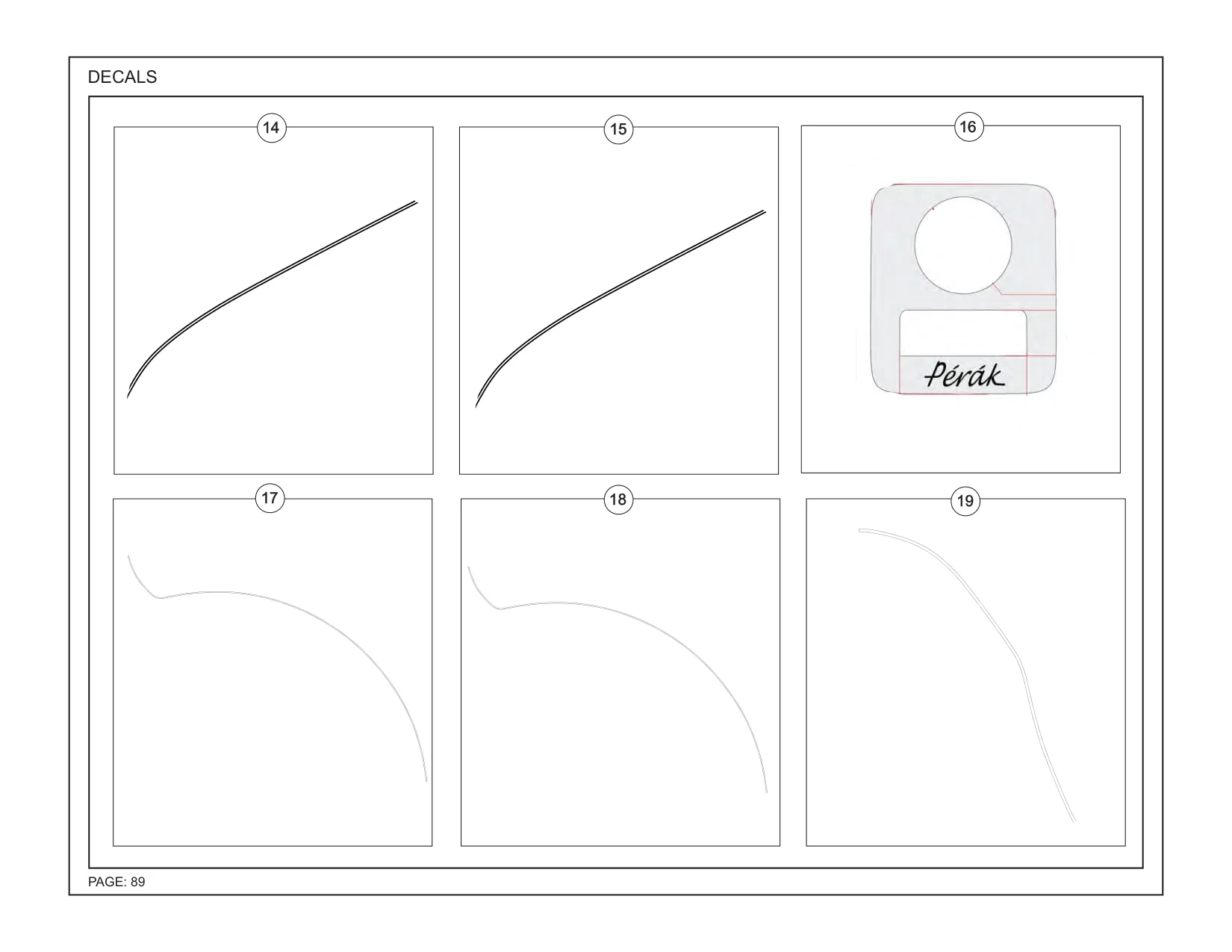

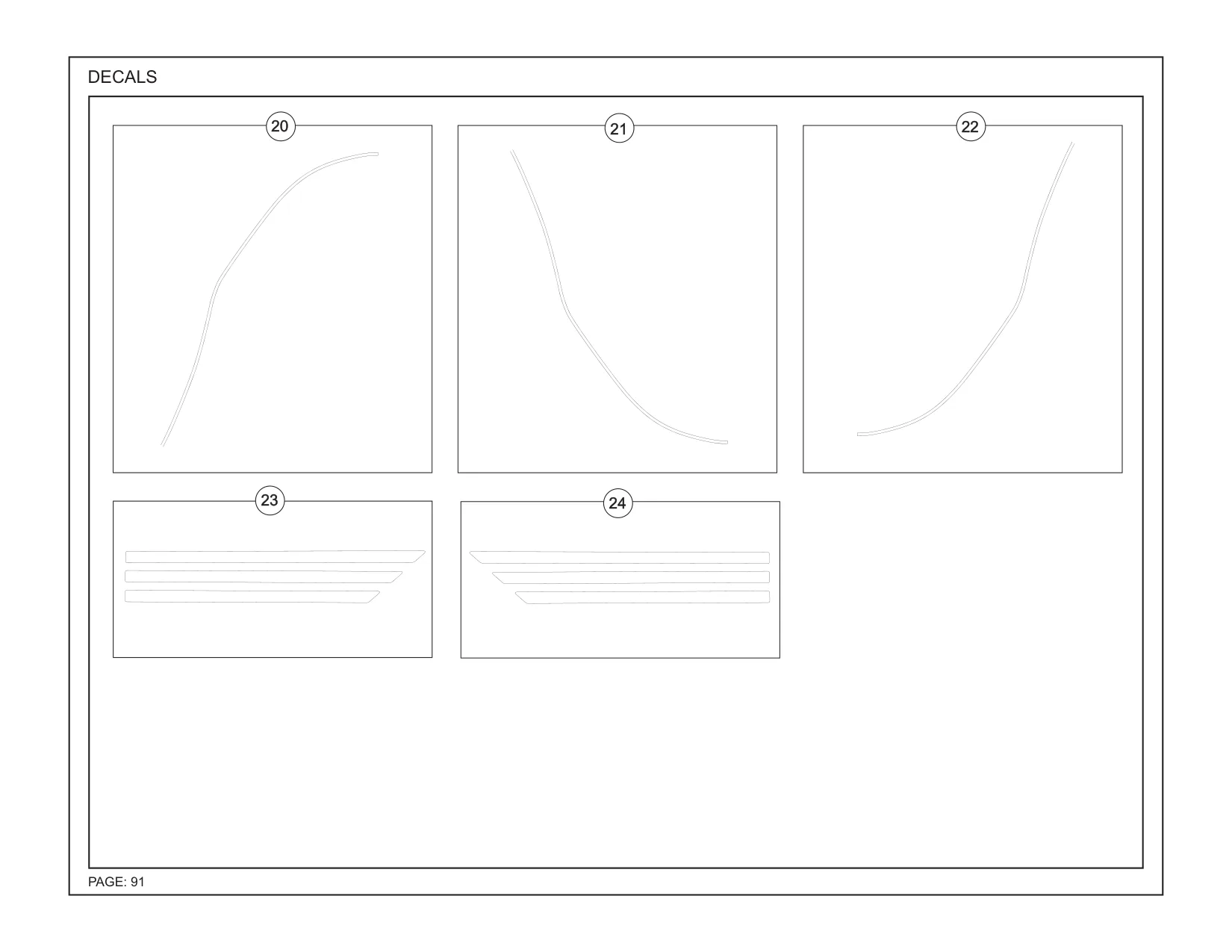

Позиций в узле: 20. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T13200KW0090N | DECAL TANK FRONT LH | 1 | ||
| 2 | T13200KW0100N | DECAL TANK FRONT RH | 1 | ||
| 3 | T13200KW0110N | DECAL TANK REAR LH | 1 | ||
| 4 | T13200KW0120N | DECAL TANK REAR RH | 1 | ||
| 5 | T13200J30090N | DECAL SIDE PANEL LHS SIDE | 1 | ||
| 6 | T13200J30100N | DECAL SIDE PANEL RHS SIDE | 1 | ||
| 7 | T13200KW0040N | LOGO ENGINE STARTER MOTOR COVER | 1 | ||
| 8 | T13200KW0050N | LOGO HORN COVER JAWA | 1 | ||
| 9 | T13200J30140L | LOGO TANK J3 | 2 | ||
| 14 | T13200J30040N | DECAL TANK TOP LH | 1 | ||
| 15 | T13200J30150N | DECAL TANK TOP RH | 1 | ||
| 16 | T13200J30160N | DECAL TANK PERAK | 1 | ||
| 17 | T13200J30020N | DECAL REAR FENDER LHS REAR | 1 | ||
| 18 | T13200J30030N | DECAL REAR FENDER RHS REAR | 1 | ||
| 19 | T13200J30050N | DECAL FRONT FENDER LHS REAR | 1 | ||
| 20 | T13200J30060N | DECAL FRONT FENDER RHS REAR | 1 | ||
| 21 | T13200J30070N | DECAL FRONT FENDER LHS FRONT | 1 | ||
| 22 | T13200J30080N | DECAL FRONT FENDER RHS FRONT | 1 | ||
| 23 | T13200J30110N | DECAL LHS SIDE | 1 | ||
| 24 | T13200J30120N | DECAL RHS SIDE | 1 |
