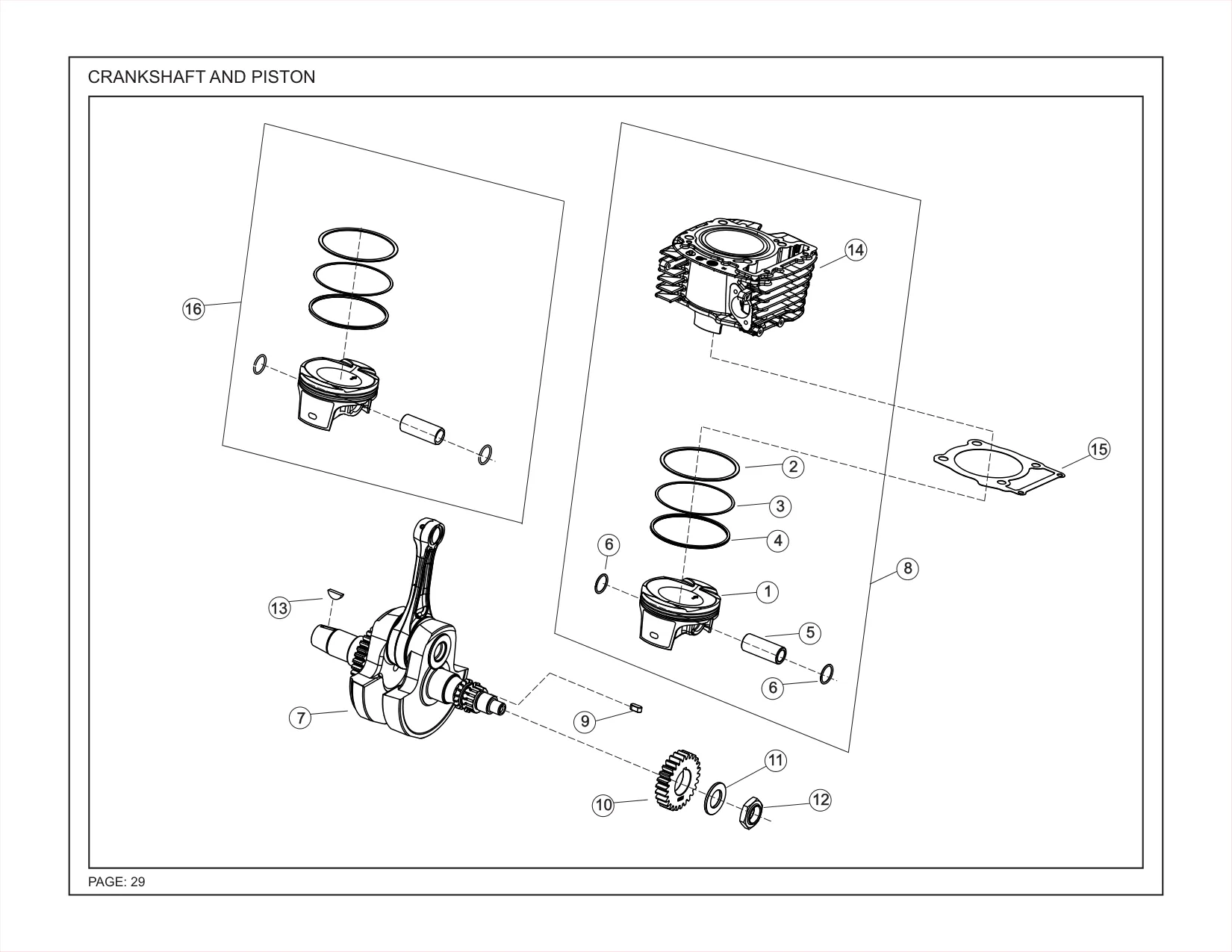

E12 — Коленвал и поршень
Позиций в узле: 16. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0210BVG0020N | PISTON | 1 | ||
| 2 | T0210BVG0030N | RING PISTON TOP | 1 | ||
| 3 | T0210BVG0040N | RING PISTON SECOND | 1 | ||
| 4 | T0210BVG0050N | RING PISTON OIL | 1 | ||
| 5 | T0210BVG0080N | PIN PISTON | 1 | ||
| 6 | T0210BVG0070N | RING SNAP | 2 | ||
| 7 | T0210AUF0230N | ASSEMBLY, CRANKSHAFT | 1 | ||
| 8 | T0202AVG0110E | BLOCK PISTON KIT SPD C334 | 1 | ||
| 9 | T18080UF0020N | KEY PRIMARY DRIVE (5*5*12) | 1 | ||
| 10 | T0215EUF0060N | GEAR, PRIMARY DRIVE (26T) (GPD) | 1 | ||
| 11 | T18010UF0020N | WASHER, GEAR PRIMARY DRIVE (<O>18.2*<O>29*3) | 1 | ||
| 12 | T0210AUF0320N | LOCK NUT, GEAR PRIMARY DRIVE (M18*1.25) | 1 | ||
| 13 | T1502AUF0170N | KEY WOODRUFF (4*13) | 1 | ||
| 14 | T0202AVG0040E | CYLINDER BLOCK C334 (BLACK COLOUR) | 1 | ||
| 15 | T0209DUF0180N | GASKET, CYLINDER BLOCK | 1 | ||
| 16 | T0210BVG0010N | ASSEMBLY, PISTON | 1 |
