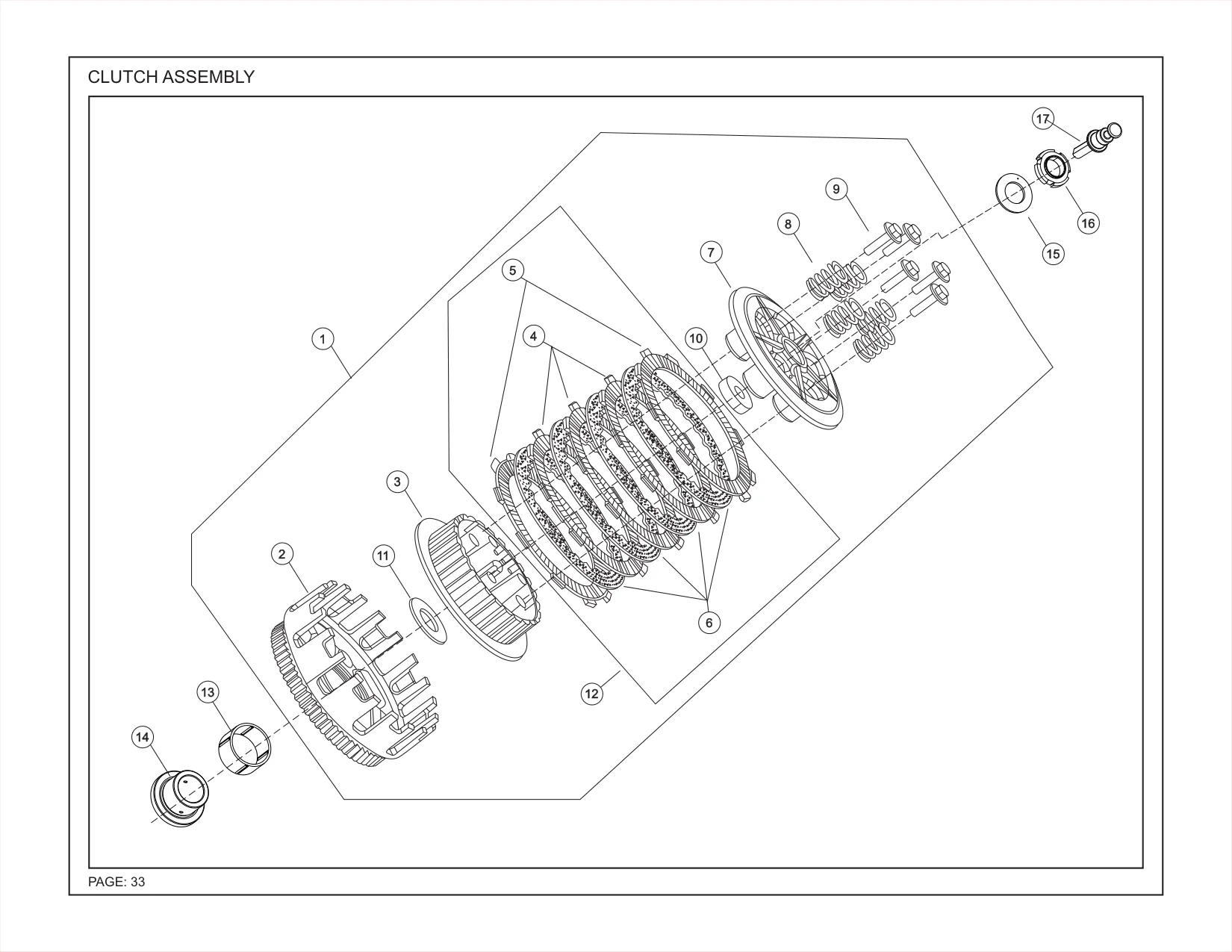

E14 — Сцепление
Позиций в узле: 17. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0218BVG0010N | ASSEMBLY, CLUTCH | 1 | ||
| 2 | T0218BUF0400N | HOUSING COMPLETE CLUTCH | 1 | ||
| 3 | T0218BUF0410N | CLUTCH HUB | 1 | ||
| 4 | T0218BUF0370N | DISK CLUTCH FRICTION MIDDLE SPD | 3 | ||
| 5 | T0218BUF0380N | DISK CLUTCH FRICTION END SPD | 2 | ||
| 6 | T0218BUF0390N | PLATE CLUTCH SPD | 4 | ||
| 7 | T0218BUF0420N | PLATE CLUTCH PRESSURE | 1 | ||
| 8 | T0218BUF0430N | SPRING CLUTCH | 5 | ||
| 9 | T0218BUF0440N | BOLT WASHER 6X25 | 5 | ||
| 10 | T0218BUF0450N | BEARING BALL RADIAL 6001 | 1 | ||
| 11 | T0218BUF0460N | WASHER 20X40X2 | 1 | ||
| 12 | T0218BUF0470N | CLUTCH PLATE AND FRICTION DISC KIT | 1 | ||
| 13 | T18050UF0300N | NEEDLE ROLLER BEARING (Ø28*Ø33*17) | 1 | ||
| 14 | T0218BUF0210N | CLUTCH BUSHING E02 (NRB VERSION) | 1 | ||
| 15 | T18010UF0170N | WASHER CONICAL (Ø16.2*Ø27.2*2) | 1 | ||
| 16 | T0218BUF0320N | CLUTCH NUT (M16*1) | 1 | ||
| 17 | T0218BUF0360N | CLUTCH PULL ROD | 1 |
