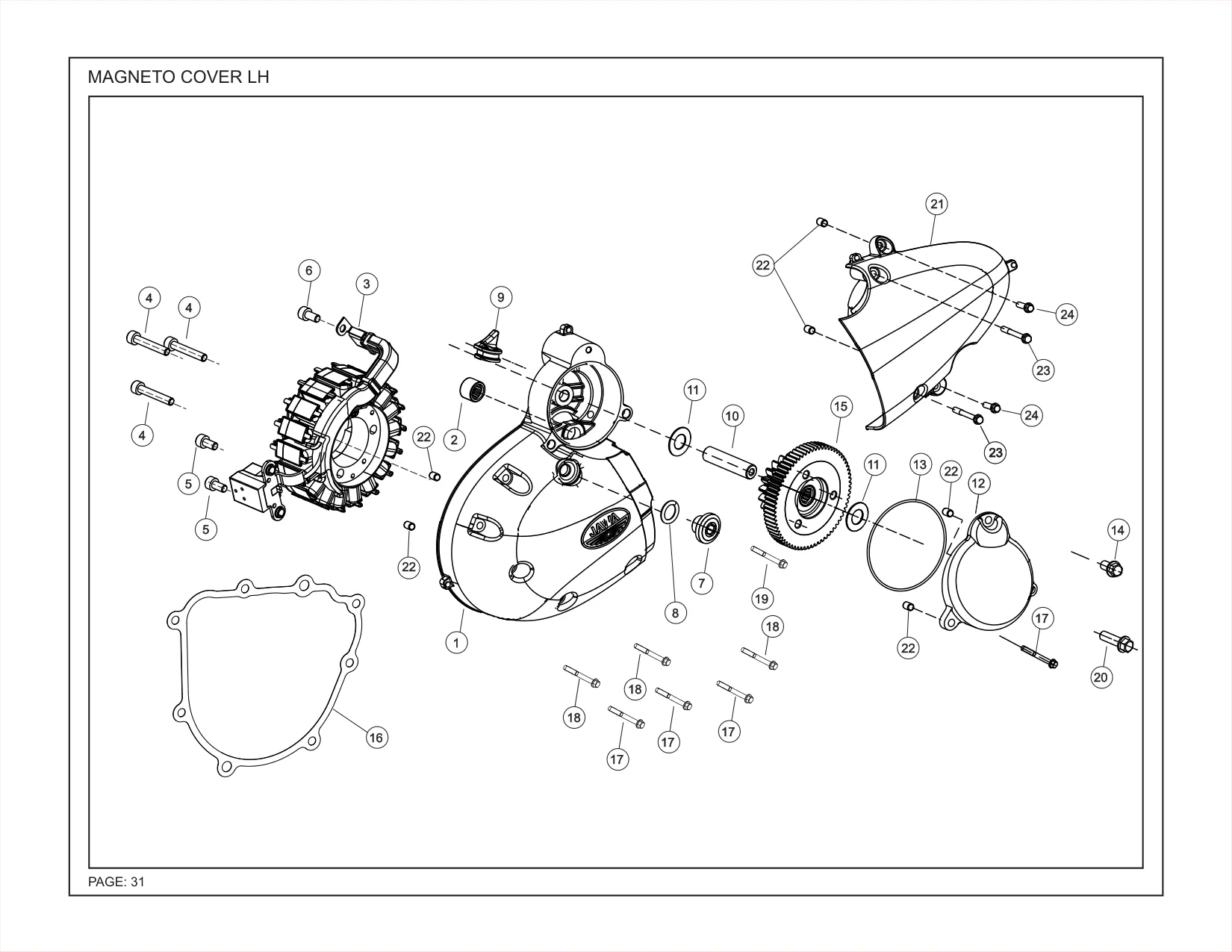

E13 — Крышка магнето левая
Позиций в узле: 24. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0202DVG0130E | COVER LH FRONT (BLACK COLOUR) | 1 | ||
| 2 | T18050UF0160N | NEEDLE BRG STRATER INTERIM GEAR (DIA10*DIA14*10) | 1 | В каталоге также: NEEDLE BRG STARTER INTERIM | |
| 3 | T1502AUF0140N | STATOR ASSEMBLY | 1 | ||
| 4 | TSF0224075 | BOLT, HEX SOCKET HEAD - M5X30 (STATOR MOUNT) | 3 | В каталоге также: BOLT, HEX SOCKET HEAD - M5X30 | |
| 5 | TSF0224077 | BOLT, HEX SOCKET HEAD - M5*10 | 2 | В каталоге также: BOLT, HEX SOCKET HEAD - M5X10 | |
| 6 | SP0805020 | PAN HEAD SCREW - M5X12 | 1 | ||
| 7 | T0202DVG0200E | GUAGE INSPECTION COVER | 1 | В каталоге также: GAUGE INSPECTION COVER (BLACK COLOUR) | |
| 8 | MJ01660001800 | O-RING, GAUGE INSPECTION COVER | 1 | ||
| 9 | T0209DVE0010N | RUBBER GROMMET MAGNETO COVER WIRE ROUTING | 1 | ||
| 10 | T0205BUF0350N | SHAFT, STARTER COUNTER | 1 | ||
| 11 | T18010UF0920N | WASHER_10.3*20*0.8 (STRATER INTRM GEAR) | 2 | В каталоге также: WASHER_10.3*20*0.8 (STARTER INTRM GEAR) | |
| 12 | T0202DVG0190E | COVER STARTER COUNTER (BLACK COLOUR) | 1 | ||
| 13 | SP040111500 | O-RING, COVER GEAR STARTER COUNTER | 1 | ||
| 14 | SP0906041 | BOLT, HEX FLANGE SH-M6X12 | 1 | ||
| 15 | T0205BUF0610N | ASSEMBLY, SLIPPER CLUTCH WITH NRB | 1 | ||
| 16 | T0209DUF0220N | GASKET- MAGNETO COVER | 1 | ||
| 17 | SP0906038 | BOLT, HEX FLANGE SH - M6X70 | 4 | ||
| 18 | SP0906043 | BOLT, HEX FLANGE SH - M6X60 | 3 | ||
| 19 | TSF0102290 | BOLT, HEX FLANGE SH - M6X35 | 1 | ||
| 20 | SF0102034 | FLANGE HEAD BOLT SH M6X28 | 1 | ||
| 21 | T0202DVG0170E | COVER LH REAR HALF (BLACK COLOUR) | 1 | ||
| 22 | MJ01760000500 | DOWEL PIN, HOLLOW (Ø8*12) | 6 | ||
| 23 | SP0906035 | BOLT, HEX FLANGE SH - M6X50 | 2 | ||
| 24 | SF0102034 | FLANGE HEAD BOLT SH M6X28 | 2 |
