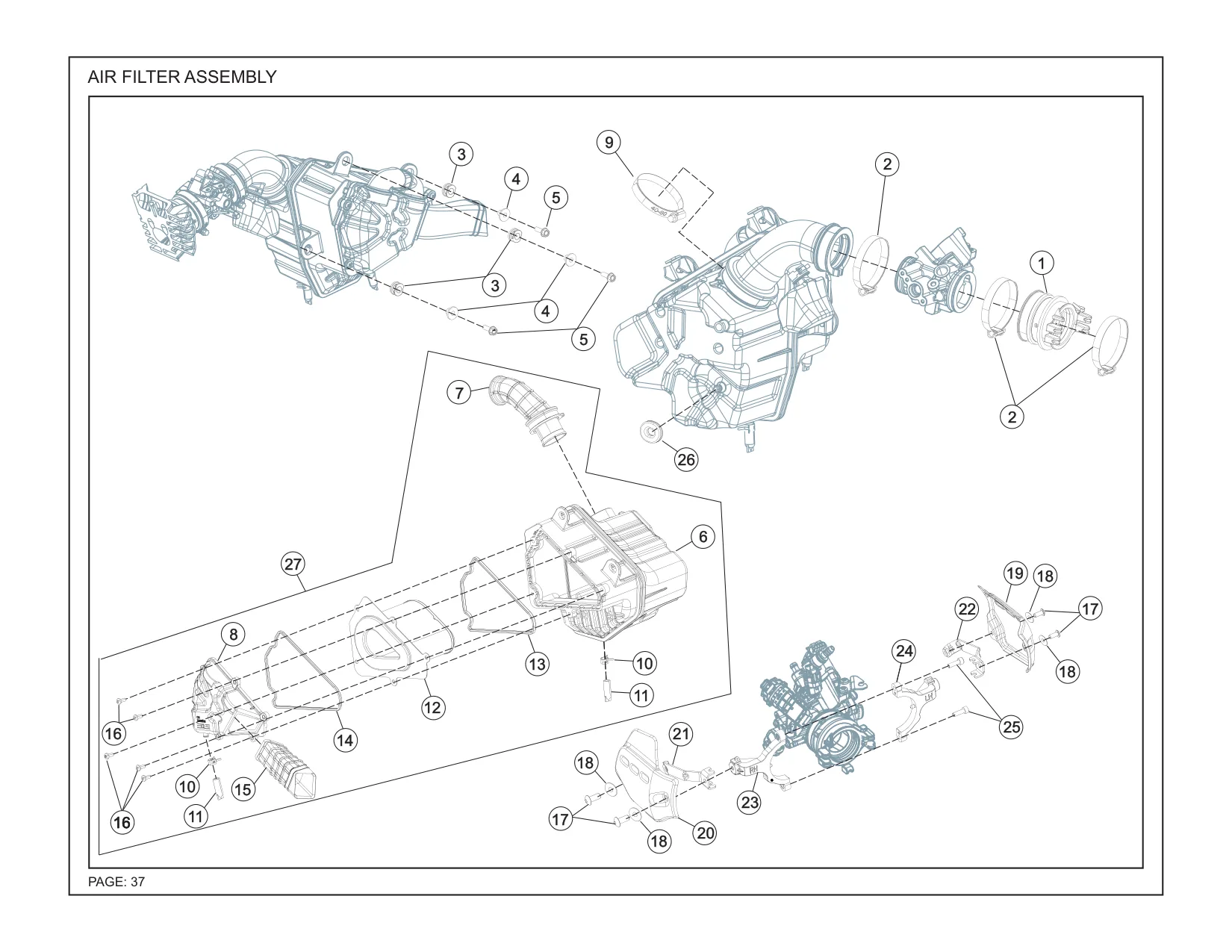

F02 — Воздушный фильтр
Позиций в узле: 27. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0101FJ20020N | INLET MANIFOLD | 1 | ||
| 2 | SF0700025 | CLAMP SPECIAL M60X0.7X9 | 3 | ||
| 3 | T13160KG0130N | GROMMET STRUCTURE MOUNTING | 3 | ||
| 4 | T13160KG0210N | COLLAR FAIRING MOUNTING | 3 | ||
| 5 | 95801-06018-07 | HEX FLANGE BOLT M6*18 | 3 | ||
| 6 | T01010J30020N | TOP AND BOTTOM CASE ASSEMBLY | 1 | ||
| 7 | T01010J30030N | OUTLET DUCT | 1 | ||
| 8 | T01010J30070N | INLET COVER ASSEMBLY | 1 | ||
| 9 | SF0700042 | CLAMP SPECIAL 70X0.65X9 | 1 | ||
| 10 | T0101AKW0070N | SPRING BAND - DRAIN TUBE | 2 | В каталоге также: HOSE CLIP | |
| 11 | T0101AKW0060N | DRAIN TUBE | 2 | В каталоге также: DRAIN TUBE WATER | |
| 12 | T0102DJ30010N | FILTER ELEMENT ASSEMBLY | 1 | ||
| 13 | T01010J30050N | GASKET B | 1 | ||
| 14 | T01010J30060N | GASKET A | 1 | ||
| 15 | T01010J30080N | INLET DUCT MAIN | 1 | ||
| 16 | TSF0212010 | TRUSS HEAD SCREW M5x12 (BLACK) | 5 | В каталоге также: SCREW M5 | |
| 17 | SF0212024 | SCREW RDSKT M5X0.8X12XA2-70 | 4 | ||
| 18 | MF01700001300 | NYLON WASHER | 4 | ||
| 19 | T13010KW0230E | COVER THROTTLE BODY LH MATT BLACK | 1 | ||
| 20 | T13010KW0240E | COVER THROTTLE BODY RH MATT BLACK | 1 | ||
| 21 | T13010KW0190N | BKT COVER THROTTLE BODY MTG RH - JAWA | 1 | В каталоге также: BKT COVER THROTTLE BODY MTG RH | |
| 22 | T13010KW0180N | BKT COVER THROTTLE BODY MTG LH - JAWA | 1 | В каталоге также: BKT COVER THROTTLE BODY MTG LH | |
| 23 | T13010KW0150N | HOLDER COVER THROTTLE BODY RH | 1 | ||
| 24 | T13010KW0140N | HOLDER COVER THROTTLE BODY LH | 1 | ||
| 25 | SF0105067 | HEX SOC CAP HEAD SCREW M5*16*0.8 | 2 | ||
| 26 | T13010KT0140N | GROMMET SIDE COVER FRONT | 1 | ||
| 27 | T01010J30010N | AIR FILTER BOX ASSY | 1 |
