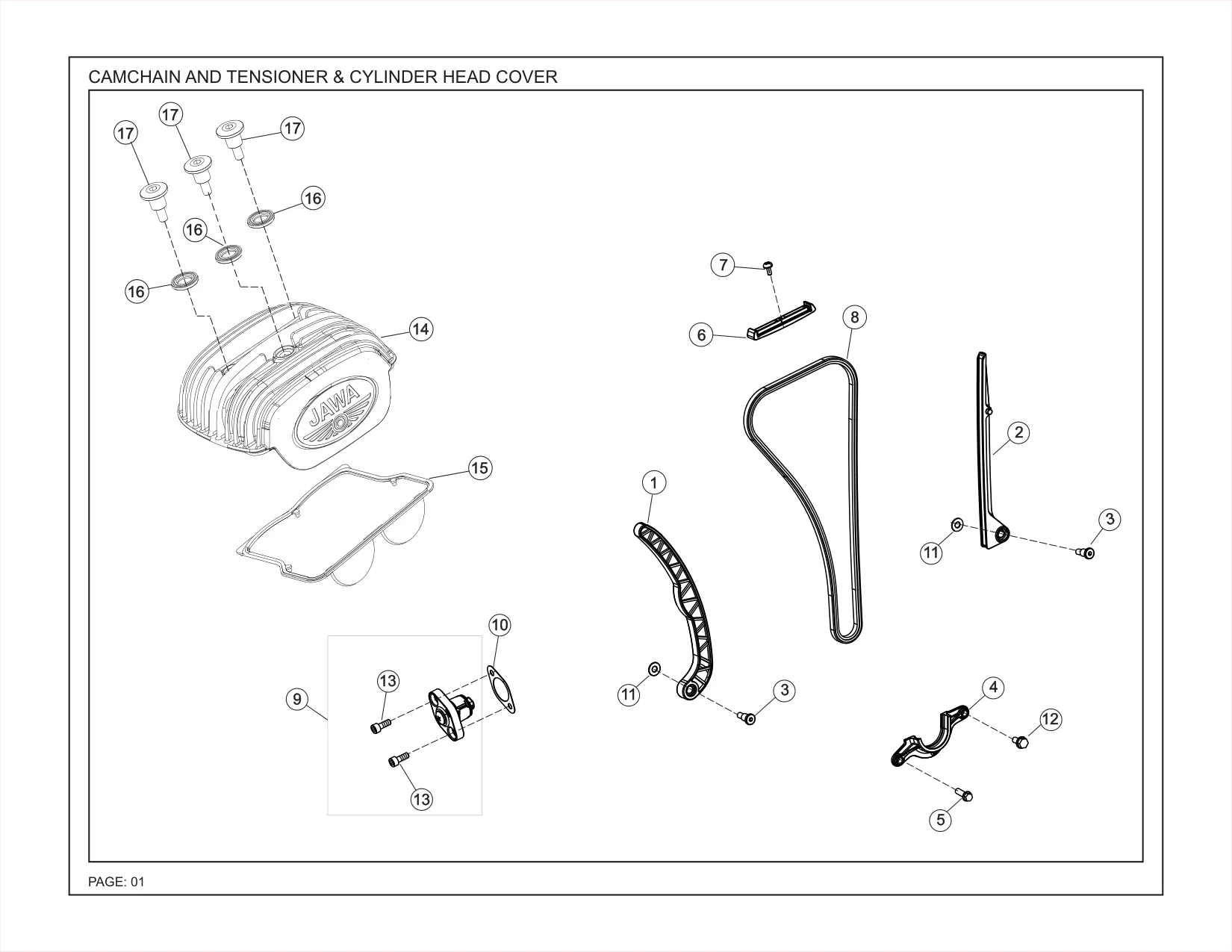

E01 — Цепь ГРМ и натяжитель, крышка ГБЦ
Позиций в узле: 18. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0202CUF0340N | GUIDE CHAIN SLACK SIDE | 1 | ||
| 2 | T0202AUF0450N | GUIDE CHAIN TIGHT SIDE | 1 | ||
| 3 | T0202CUF0810N | GUIDE CHAIN PIVOT BOLT | 2 | ||
| 4 | T0202CUF0360N | GUIDE CHAIN WITH INSERT BOTTOM | 1 | ||
| 5 | SP0906029 | BOLT, HEX FLANGE SH - M6X20 | 1 | ||
| 6 | T0208AUF0640N | GUIDE CHAIN (TOP) WITH INSERT | 1 | ||
| 7 | 93500-04010-OH | PAN HEAD SCREW (M4*10) | 1 | ||
| 8 | T0208BUF0390N | TIMING CHAIN | 1 | ||
| 9 | T0208EVE0020N | ASM TENSIONER AND MTG BOLTS KIT | 1 | ||
| 10 | T0208EUF0660N | GASKET, TENSIONER | 1 | ||
| 11 | T18010UF0150N | WASHER, STAR DRUM BOLT (Ø6.4*Ø15*1) | 2 | ||
| 12 | TSF0102282 | BOLT, HEX FLANGE SH - M6X14 | 1 | ||
| 13 | 90001-M9Q-0000-IK | SHF FLANGE BOLT 6*22 | 2 | ||
| 14 | T0202DVG0160E | COVER CYLINDER HEAD (BLACK COLOUR) | 1 | ||
| 15 | T0209AVE0010N | GASKET/SEAL, COVER CYLINDER HEAD | 1 | В каталоге также: GASKET/SEAL, COVER CYLINDER HEAD_5 LUGS | |
| 15.1 | T0209AVG0010N | GASKET/SEAL, COVER CYLINDER HEAD_7 LUGS | 1 | ||
| 16 | T18010UF0050N | RUBBER WASHER | 3 | ||
| 17 | T02010VG0010N | CYL HEAD COVER SPECIAL BOLT | 3 | В каталоге также: CYLINDER HEAD COVER SPECIAL BOLT |
