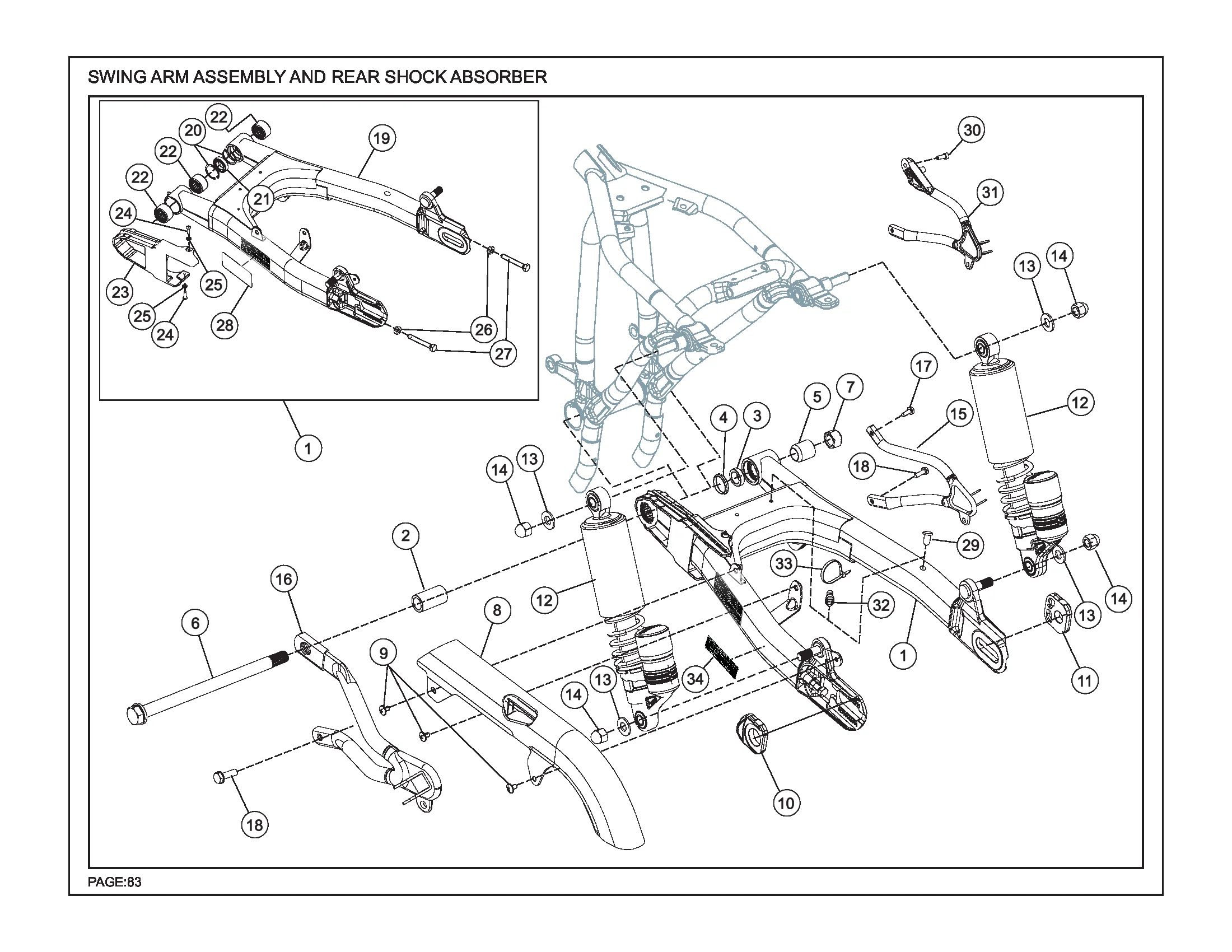

F23 — Маятник и амортизатор задний
Позиций в узле: 39. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T11000KW0020A | SWINGARM SUB ASSY MAROON J1A | 1 | ||
| 1.1 | T11000KW0020L | SWINGARM SUB ASSY GREY J1A | 1 | ||
| 2 | T1101AKW0010N | BUSH INNER LH | 1 | ||
| 3 | T1101AKW0020N | BUSH, INNER RH | 1 | ||
| 4 | T1101AKW0040N | COLLAR - BUSH INNER RH | 1 | ||
| 5 | T1101AKW0030N | BUSH OUTER RH | 1 | ||
| 6 | T1101CKW0010N | SWING ARM AXLE M16 | 1 | ||
| 7 | TSF0318003 | SELF LOCK NUT M16 | 1 | ||
| 8 | T08000KW0150E | CHAIN COVER MATT BLACK | 1 | ||
| 9 | Sf0212023 | SCREW RDSKT M6X1X12XA2-70 | 3 | ||
| 10 | T08000KW0180N | CHAIN TENSION ADJUSTOR LH | 1 | ||
| 11 | T08000KW0190N | CHAIN TENSION ADJUSTOR RH | 1 | ||
| 12 | T11020KW0010N | REAR SHOCK ABSORBER | 2 | ||
| 13 | MF01700003500 | SPECIAL WASHER | 4 | ||
| 14 | SF0300040 | CAP NUT (M12X1.5P) | 4 | ||
| 15 | T2201BKW0070A | PILLION FOOTREST HOLDER RH MAROON RAL3005 | 1 | ||
| 15.1 | T2201BKW0070L | PILLION FOOTREST HOLDER RH GREY RAL7035 | 1 | ||
| 16 | T2201BKW0020A | PILLION FOOTREST HOLDER LH MAROON RAL3005 | 1 | ||
| 16.1 | T2201BKW0020L | PILLION FOOTREST HOLDER LH GREY RAL7035 | 1 | ||
| 17 | SF0202054 | SCREW HEX FL SL M8X1.25X20X8.8 | 1 | ||
| 18 | SF0202009 | SCREW HEX FL M8X1.25X25X8.8XZN | 2 | ||
| 19 | T11010KW0020A | COMP SWING ARM MAROON RAL3005 | 1 | ||
| 19.1 | T11010KW0020L | COMP SWING ARM GREY RAL7035 | 1 | ||
| 20 | SF0602002 | CIRCLIP INT - LUG 30X1.2XPH | 2 | ||
| 21 | SP010100119 | BEARING DG BALL SR 17X30X7 | 1 | ||
| 22 | 6801CAP00021N | NEEDLE_ROLLER_BEARING | 3 | ||
| 23 | T08000KW0170N | CHAIN SLIDER | 1 | ||
| 24 | TSF0214025 | TAPPING SCREW M4X12 | 2 | ||
| 25 | 94101-04700 | WASHER PLAIN M4X9X0.8 | 2 | ||
| 26 | SF0301245 | NUT HEX M8X1.25XX6.5X8XZN | 2 | ||
| 27 | SF0201389 | SCREW HEX M8X1.25X55X8.8 | 2 | ||
| 28 | T08000KW0160N | CAUTION STICKER CHAIN & TYRE | 1 | ||
| 29 | MF01770001300 | PIN (FR. BRAKE CABLE) | 1 | ||
| 30 | SP0308009 | SOCKET HEAD SCREW M8X20 (10.9 GRADE) | 1 | ||
| 31 | T2201BKW0140A | HOLDR PILION RH MAROON RAL 3005 | 1 | ||
| 31.1 | T2201BKW0140L | HOLDR PILION RH GREY RAL7035 | 1 | ||
| 32 | T25010KW0032N | CABLE TIE CLAMP, BRAKE HOSE_HELLERMANN | 2 | ||
| 33 | T1501AKE2052E | CABLE STRAP 200MM_HELLERMANN | 2 | ||
| 34 | T11010KW0050N | NOISE LABEL STICKER | 1 |
