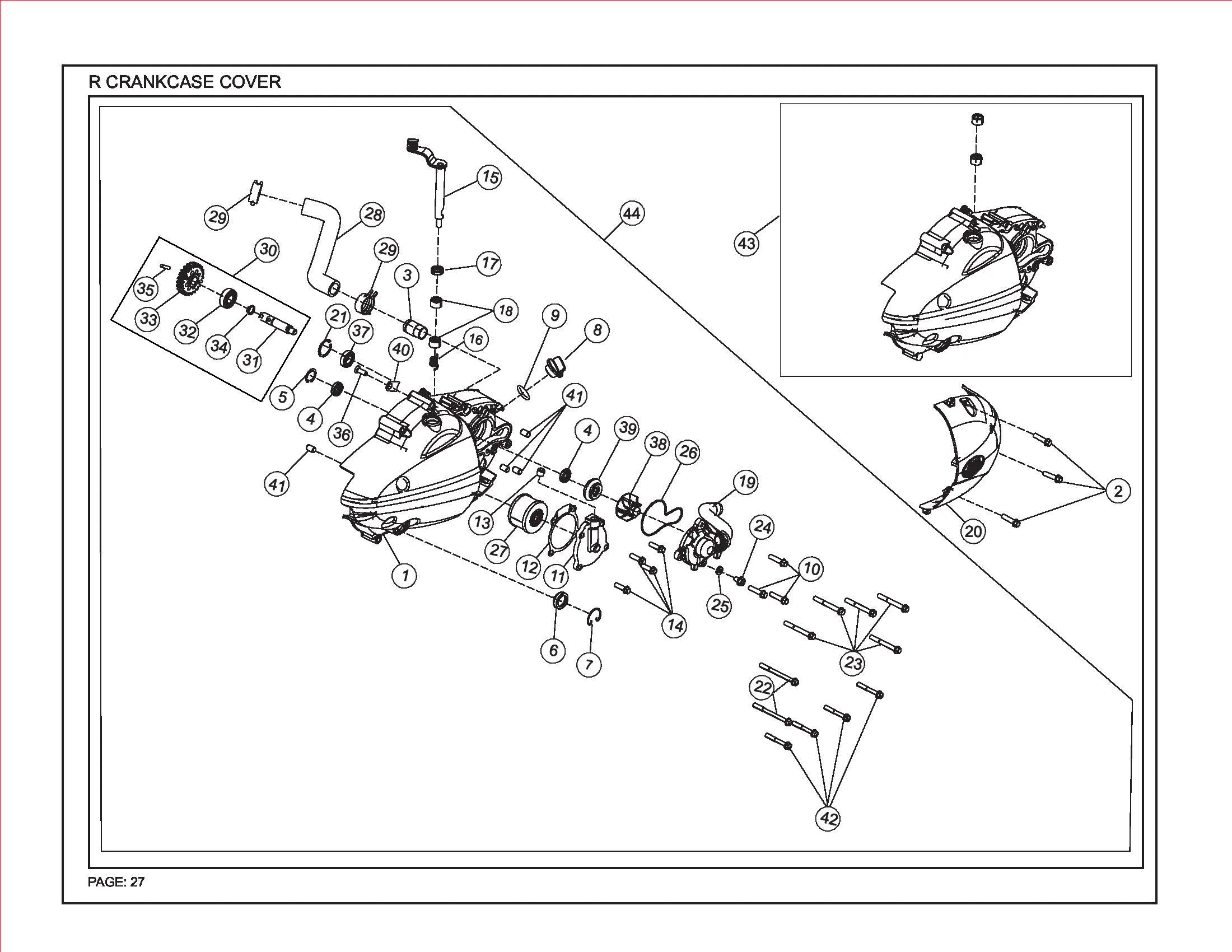

E11 — Крышка картера правая
Позиций в узле: 44. Выделите строку в таблице или точку на схеме.
| № поз. | Артикул | Наименование | Кол-во | Примечание | |
|---|---|---|---|---|---|
| 1 | T0202DVE0380N | COVER RH C300 WITH OIL PLUG | 1 | ||
| 2 | SF0102034 | FLANGE HEAD BOLT SH M6X28 | 3 | ||
| 3 | T0401EUF0140N | PIPE, COVER RH | 1 | ||
| 4 | T18020UF0110N | OIL SEAL CRANKSHAFT | 2 | ||
| 5 | T0202DUF0750N | CIRCLIP - OIL SEAL CRANKSHAFT | 1 | ||
| 6 | T02090UH0010N | LENS, OIL LEVEL CHECK | 1 | ||
| 7 | T0202CUF2410N | WIRE CLIP GLASS WINDOW | 1 | ||
| 8 | T0203BUF0250N | CAP OIL FILLER | 1 | ||
| 9 | T0209AVN0300N | O RING CAP OIL FILLER | 1 | ||
| 10 | SP0206021 | BOLT, HEX FLANGE SH - M6X25 | 3 | ||
| 11 | T0202DVE0080N | COVER OIL FILTER C300 | 1 | ||
| 12 | T02090VE0030N | GASKET COVER OIL FILTER | 1 | ||
| 13 | 0302AB0560N | PLUG M8X1.25 | 1 | ||
| 14 | SP0906029 | BOLT, HEX FLANGE SH - M6X20 | 4 | В каталоге также: BOLT, FLANGE HEX HEAD SH M6X20 | |
| 15 | T0219AUF0010N | ASSEMBLY CLUTCH LIFTER | 1 | ||
| 16 | T0219AUF0060N | CLUTCH LIFTER SPRING | 1 | ||
| 17 | T18020UF0130N | SELECTOR SEAL | 1 | ||
| 18 | T18050UF0220N | NEEDLE ROLLER BEARING (12*16*10) | 2 | ||
| 19 | T0202DVE0130N | ASM COVER COOLANT PUMP | 1 | ||
| 20 | T0202DVE0020N | SERVICE COVER RH | 1 | ||
| 21 | SF0602068 | CIRCLIP INT - LUG 25X1.2 | 1 | ||
| 22 | SP0906033 | BOLT, HEX FLANGE SH - M6X65 | 2 | ||
| 23 | SP0906035 | BOLT, HEX FLANGE SH - M6X50 | 5 | ||
| 24 | TSF0102281 | FLANGE BOLT M6*10 | 1 | ||
| 25 | MJ01700005400 | SEALING WASHER (6.2 X 12 X 2) | 1 | ||
| 26 | T0209BVE0010N | O-RING, COVER COOLANT PUMP | 1 | ||
| 27 | T0203BUF0260N | OIL FILTER ASSEMBLY | 1 | ||
| 28 | T04000KW0050N | HOSE PIPE TO CYLINDER BLOCK | 1 | ||
| 29 | T0401DKE0290N | SPRING BAND CLAMP DIA 24 | 2 | ||
| 30 | T0204AVE0070N | ASM COOLANT PUMP SHAFT | 1 | ||
| 31 | T0401EVE0010N | SHAFT COOLANT PUMP C300 | 1 | ||
| 32 | MF01850000300 | DG BALL BRG 12X28X8 6001 | 1 | ||
| 33 | T0401EUF0090N | COOLANT PUMP GEAR | 1 | ||
| 34 | SF0601216 | CIRCLIP EXT - LUG 12X1.5 | 1 | ||
| 35 | T0202DUF0850N | PIN WATER PUMP GEAR | 1 | ||
| 36 | SF0211009 | SCREW FTCS CR SL M6X1X18X8.8 | 1 | ||
| 37 | SP010102309 | BEARING DG BALL SR 12X24X6 | 1 | ||
| 38 | T0401EUF0030N | IMPELLER | 1 | ||
| 39 | T0401EUF0040N | WATER SEAL | 1 | ||
| 40 | T0401BVE0010N | PLATE RETAINER | 1 | ||
| 41 | MJ01760000500 | DOWEL PIN, HOLLOW (Ø8*12) | 4 | ||
| 42 | SP0906032 | FLANGE BOLT SH - M6 X 40 | 4 | ||
| 43 | T0202DVE0340N | CLUTCH COVER WITH CLUTCH LIFTER'S BOTH NRB | 1 | ||
| 44 | T0202DVE0030N | ASSEMBLY COVER RH | 1 |
